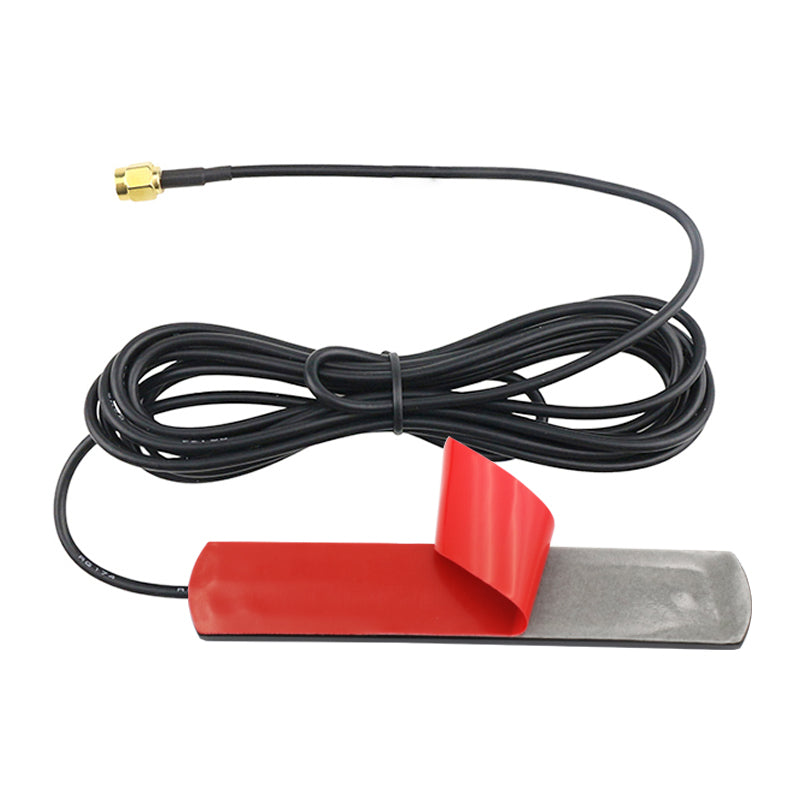

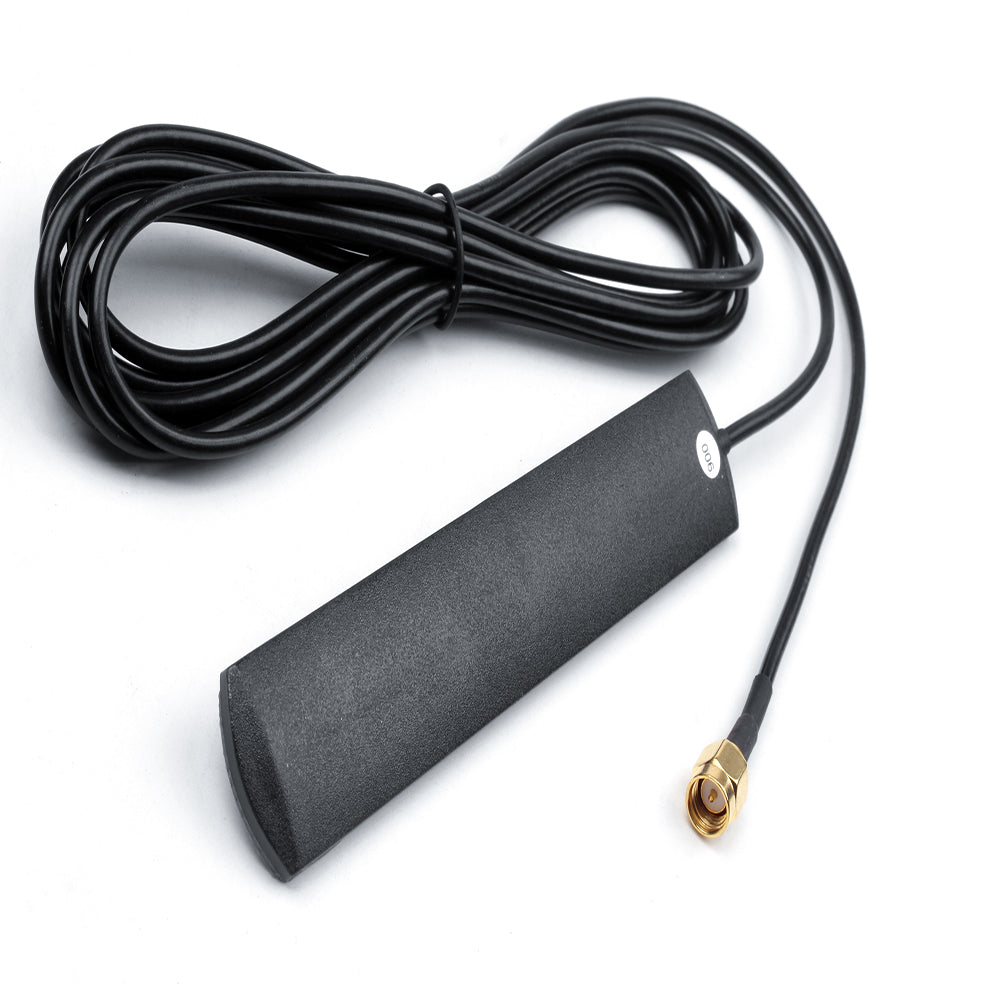

SMA Male/ TS9/ CRC9 Connector GSM Aerial 3G 5dbi GSM Antenna with RG174 Cable 1M/2M/3M

QTY:  10+/100+ /3000+ /5000+

Price:  0.85/0.82/0.8/ Inquire better price

Model Numer: FT-GSMP01

Dimension: 115*21*4.5mm

Frequence: 824-960/1710-1990Mhz

Gain: 5 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Polarization: Vertical

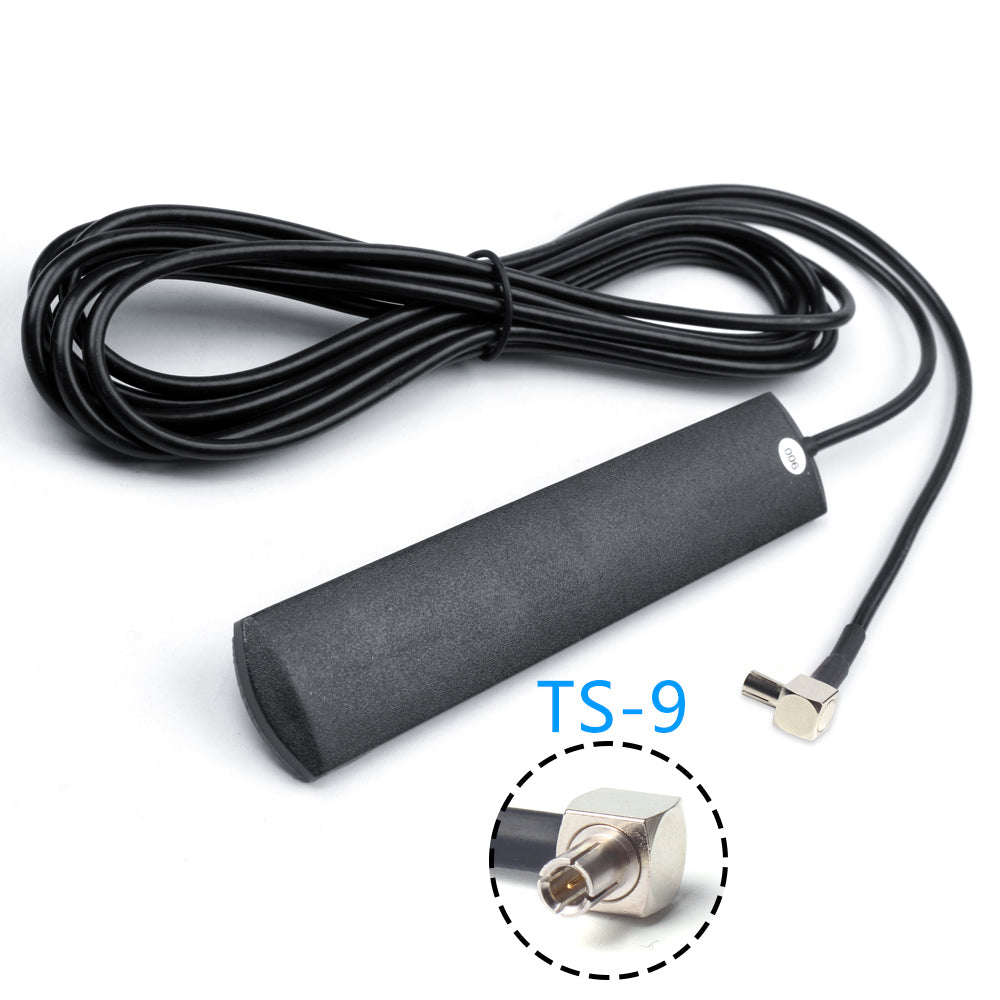

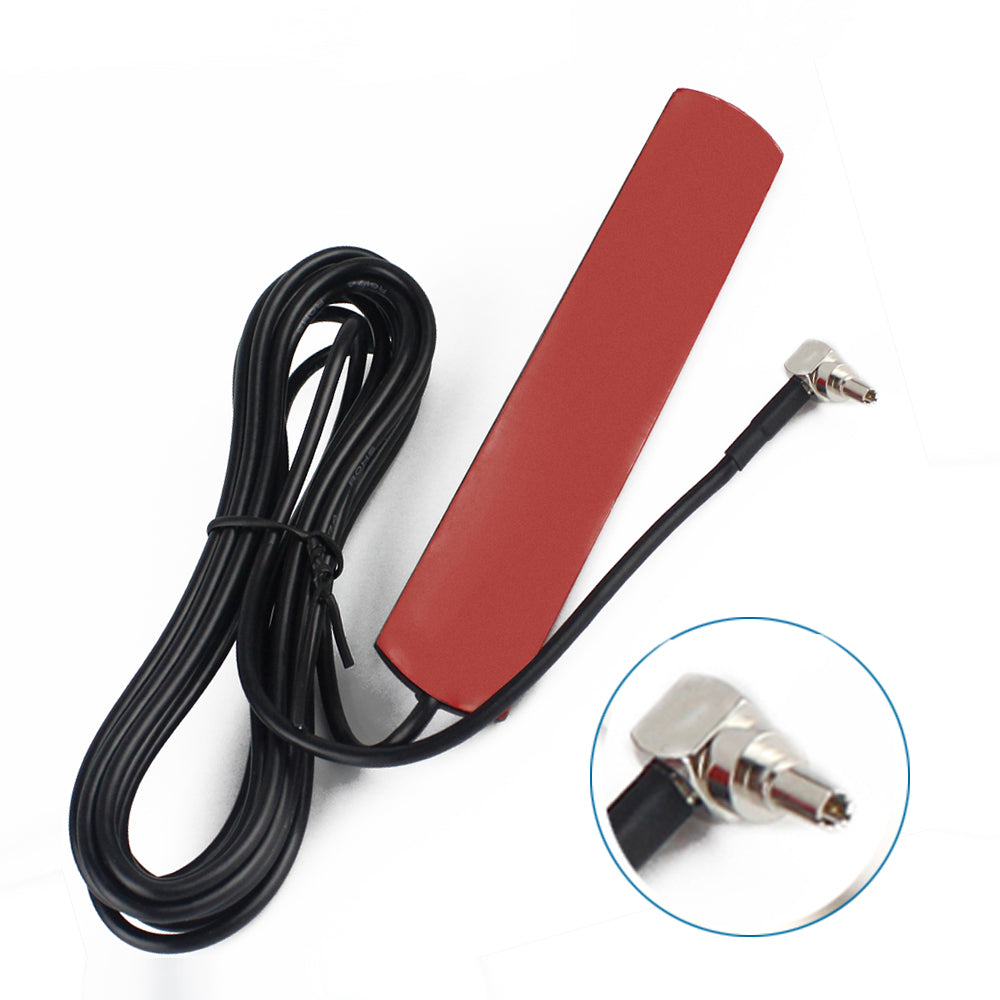

Connector: SMA Male(Default)/ TS9 Male/ CRC9 Male

Cable Length: 1Meter(Default))/Customized

Admitted Power: 2W

Radiation: Omni directional

Outter Material: ABS

Color: Black

Application for Device:

IEEE 802.11 b/g/n WLAN System
Wireless Communication System
Wi-Fi / WiMAX / MIMO System

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 80℃

Certificates: ROHS
