SMA Male to U.fl/IPEX Mini PCI Low Loss RG1.13 RF Coaxial Extension Cable

Model Numer:FT-SMAJSFN8-13B-150IX

Cable Type: RG1.13 Coaxial Cable

Frequency Range:DC/3GHz

VSWR.: ≤1.3

Out Impedance: 50 ohm

Power Rating: 50 dbm

Application: Telecommunication

Cable Length: 50-100-150mm or customized

Cable Color: Black/Grey

Connector:

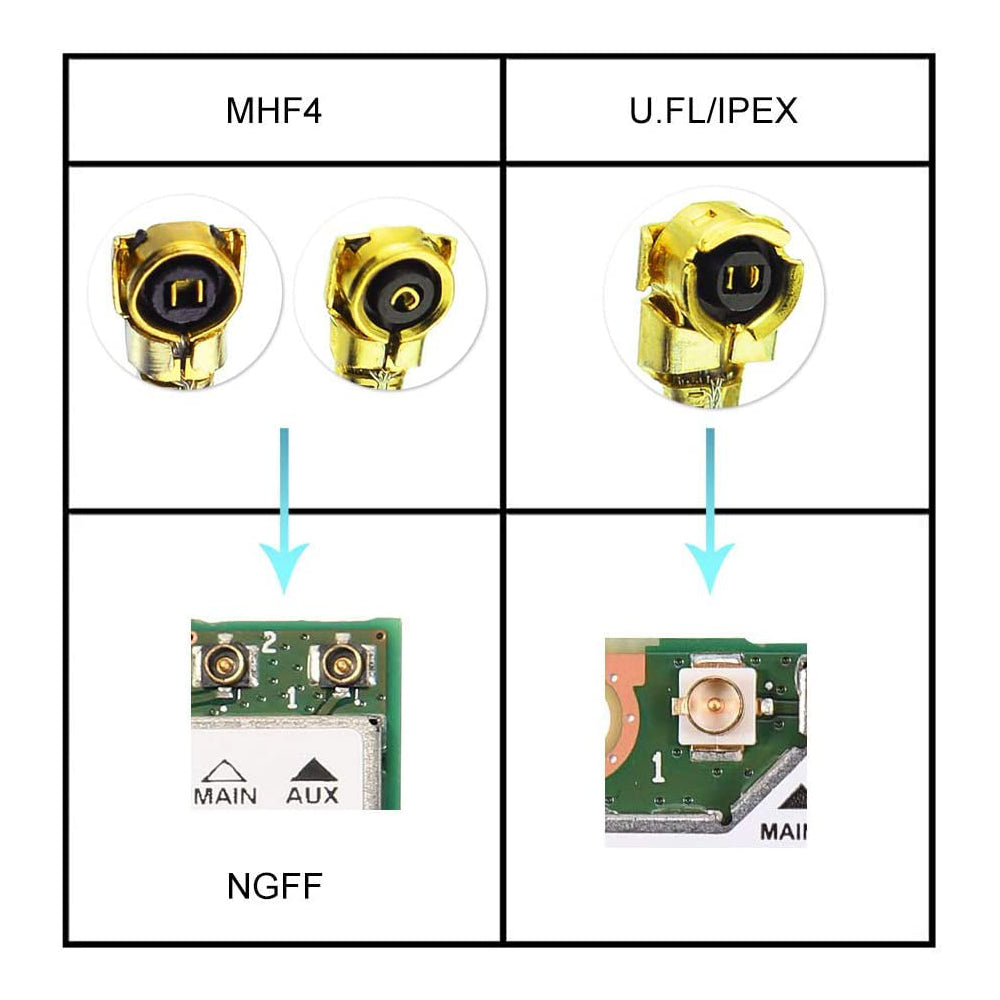

Straight SMA Male to IPEX/U.FL Female

Straight RP-SMA Male to IPEX/U.FL Female

Conductor Material: 100% Bare Copper

Jacket: PVC

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Voltage withstand:1000V maximum

Durability: ≥500 cycles
