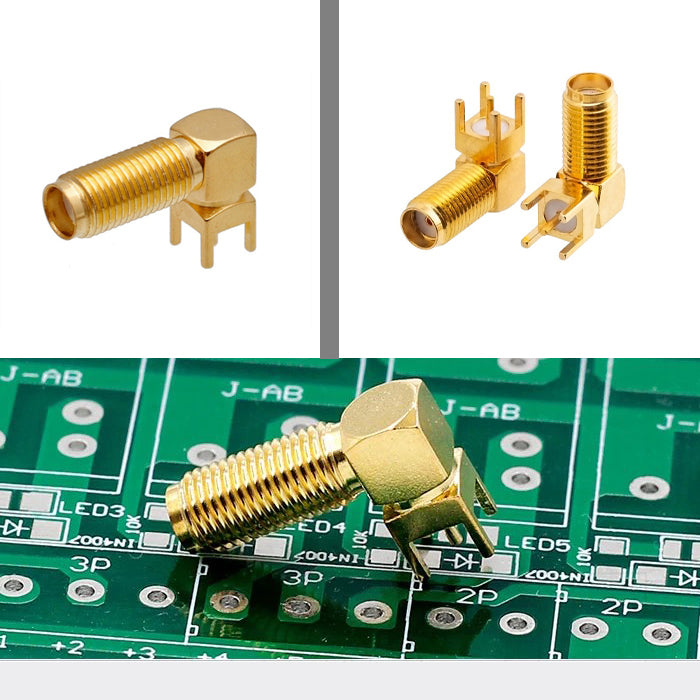

SMA Female Thru Hole PCB Mount Bulkhead Right Angle 20mm Long Version SMA RF Connector
SMA Female Thru Hole PCB Mount Bulkhead Right Angle 20mm Long Version SMA RF Connector
QTY: 20+ /100+ /1000+/ 3000+
Price: 0.85/0.78/0.7/ Inquire better price
Model Number:FT-SMAW4PL
Vibration:MIL-STD-202,Method 213
Frequency: DC~12.4GHz
Working Voltage: 335V max
Withstand Voltage: 1000V rms
Impedance: 50ohm
Center Contact:≤ 3 mΩ
Outer Contact≤ 2 mΩ
Insulation resistance:≥ 5000 MΩ
Insertion loss: ≤0.15 dB/6GHz
VSWR: ≤1.20+0.003f
Durability(mating):≥500times(cycles)
Shell: Brass,gold plated
Contact pin:Brass,gold plated
Socket:beryllium,gold plated
Elastic contact:beryllium,gold plated
Operation Temperature:-65~+165°C (PE Cable -40~+85°C)
Dimensions:20*13*6mm
