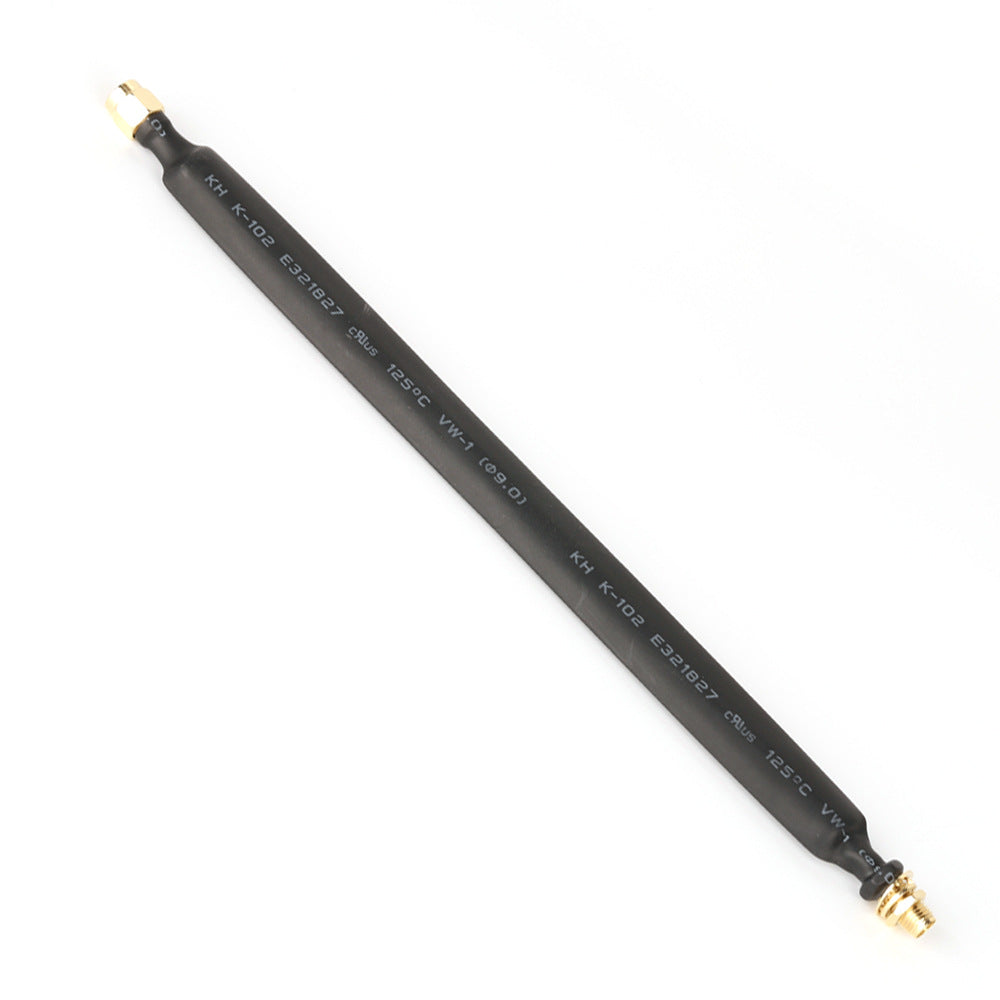

RP-SMA male to RP-SMA female pin high temperature resistance low loss through wall transfer line flat folding extension cable

Model Numer:FT-SSMAF0X

Cable Type: Flat Coaxial Cable

Frequency Range:DC/3-6GHz

VSWR.: ≤1.3

Out Impedance: 50 ohm

Return Loss: -11 dB Max

Working Voltage: 170V/50 Hz

Cable Length: 10-20-30-40cm or customized

Cable Color: Black

Cable OD: 2.0mm

Connector: RP-SMA Male to RP-SMA Female

Conductor Material: 100% Bare Copper

Jacket: PVC

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Insulation Resistance: 1000M ohm

Cable Loss: 1.34 dB / m @ 1GHz

Contact Resistance:

Center Contact: 10M ohm outer

Contact: 5M ohm

Admitted Power: 2W

Durability: ≥500 cycles

Features:Waterproof, high temperature resistance
