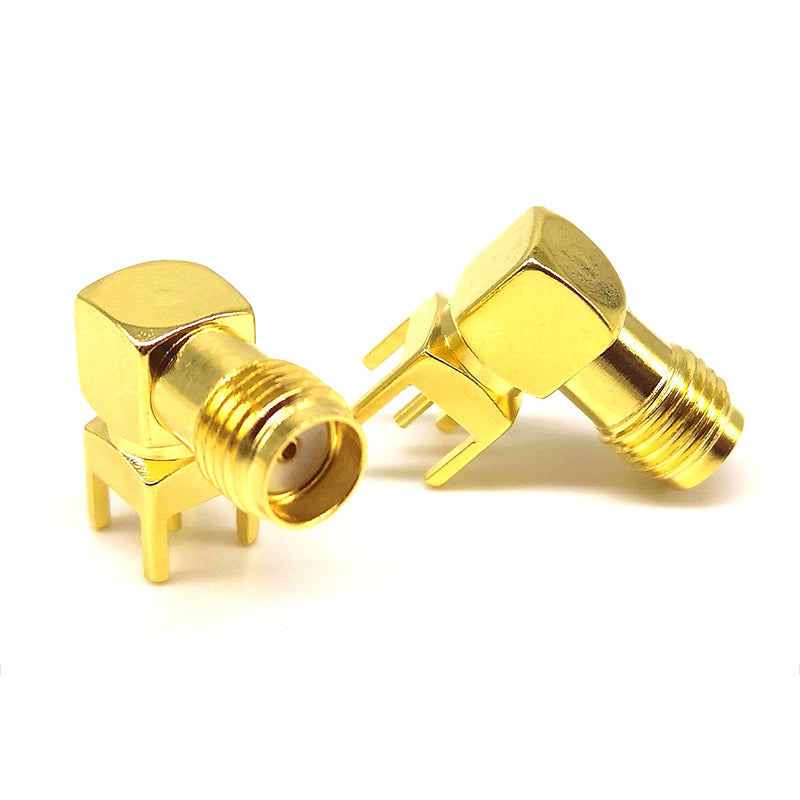

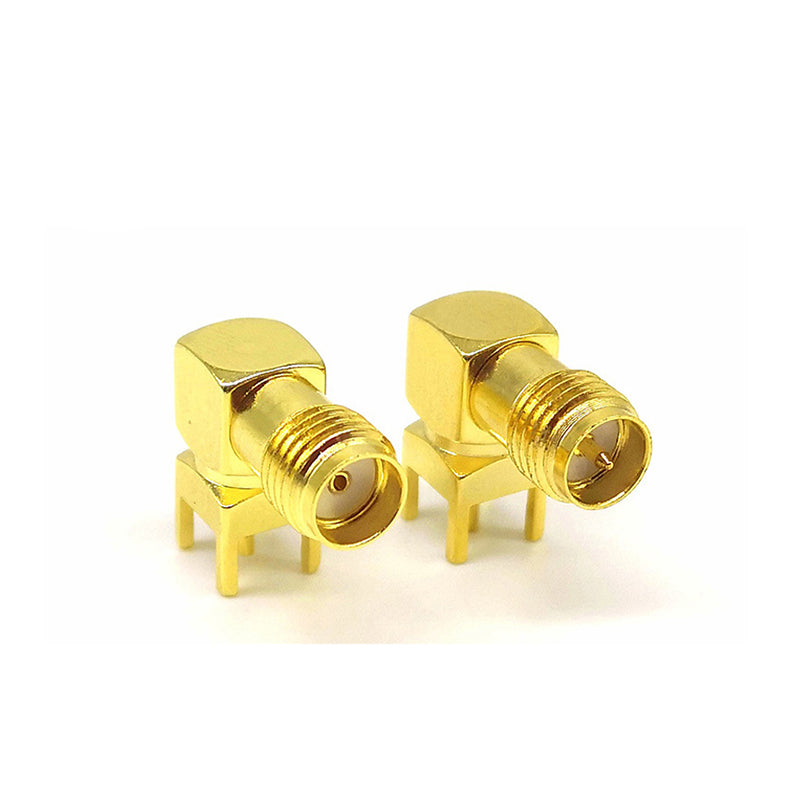

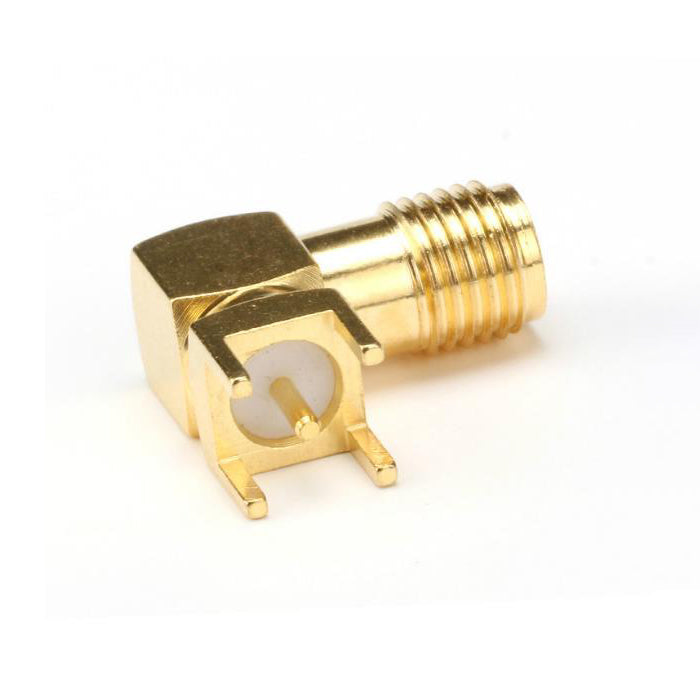

Right Angle 90 Degree ( SMA-KWE ) PCB Mount Connector RF Adapter SMA Female Thru Hole plug Connector

QTY:  20+ /500+ /1000+/ 5000+

Price:  0.39/0.35/0.31/0.28 Inquire better price

Model Numer: FT-SMAKW006

Material:Copper

Color: Brass

Connector:Right Angle SMA Female

Frequency:0-6G

Impedance:50ohm

Durability:≥500 cycles

Rated Voltage:1000V rms

Application:RF

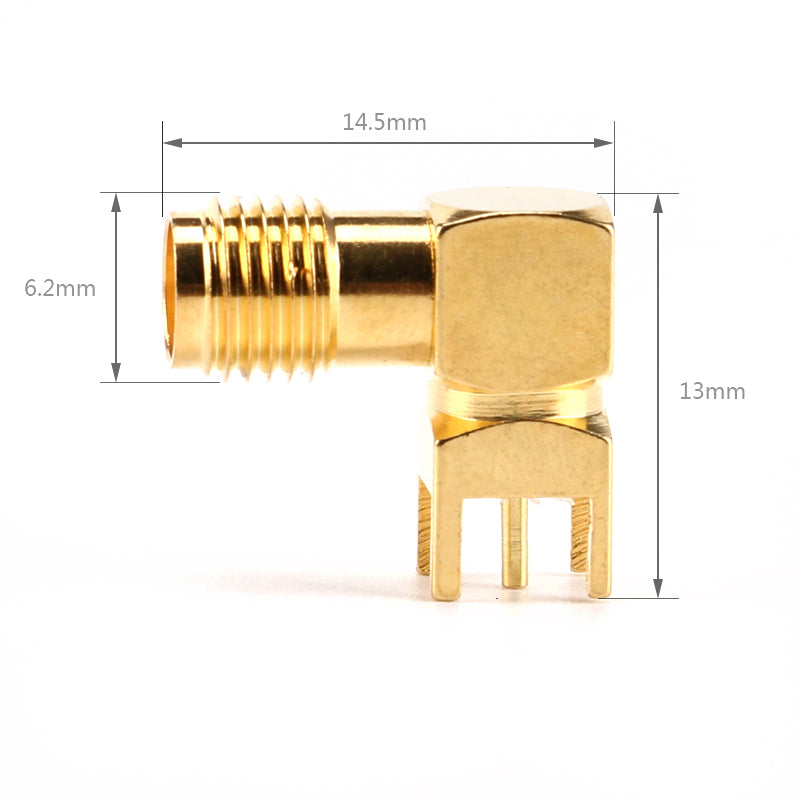

Dimensions:14.5mm

Temperature:- 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 80℃

Working Voltage:335V max

Certificates: ROHS
