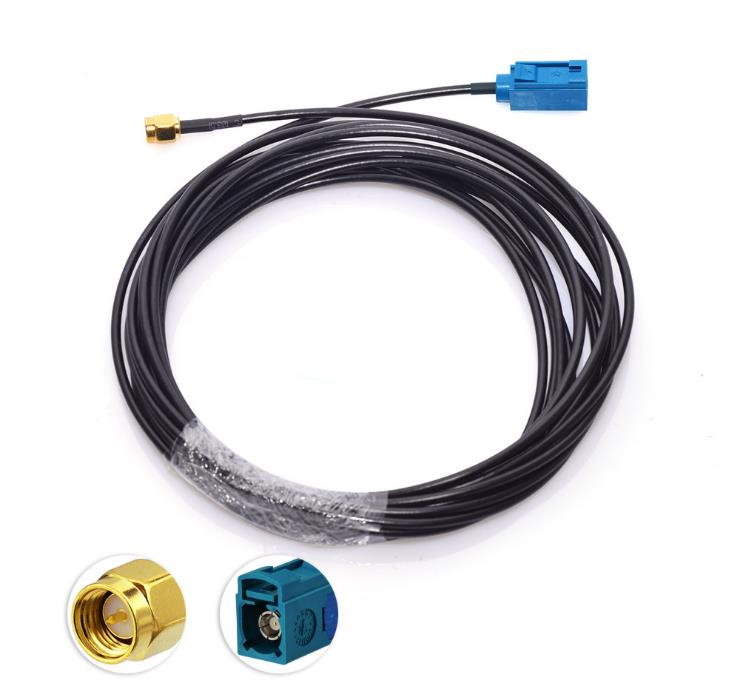

Rf Connector Fakra-C Female to SMA Male Flexible RG174 Cable for GPS Antenna

Model Numer:FT-174FAKRACSMA01

Cable Type: RG174 Coaxial Cable

Frequency Range:DC/6GHz

VSWR.: ≤1.3

Out Impedance: 50 ohm

Return Loss: -11 dB Max

Working Voltage: 170V/50 Hz

Cable Length: 10-20-30-40cm or customized

Cable Color: Black

Cable OD: 2.0mm

Connector: Fakra-C Female to SMA Female

Conductor Material: 100% Bare Copper

Jacket: PVC

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Insulation Resistance: 1000M ohm

Cable Loss: 1.34 dB / m @ 1GHz

Contact Resistance:

Center Contact: 10M ohm outer

Contact: 5M ohm

Admitted Power:2W

Durability: ≥500 cycles

Waterproof Rate:Waterproof Rate
