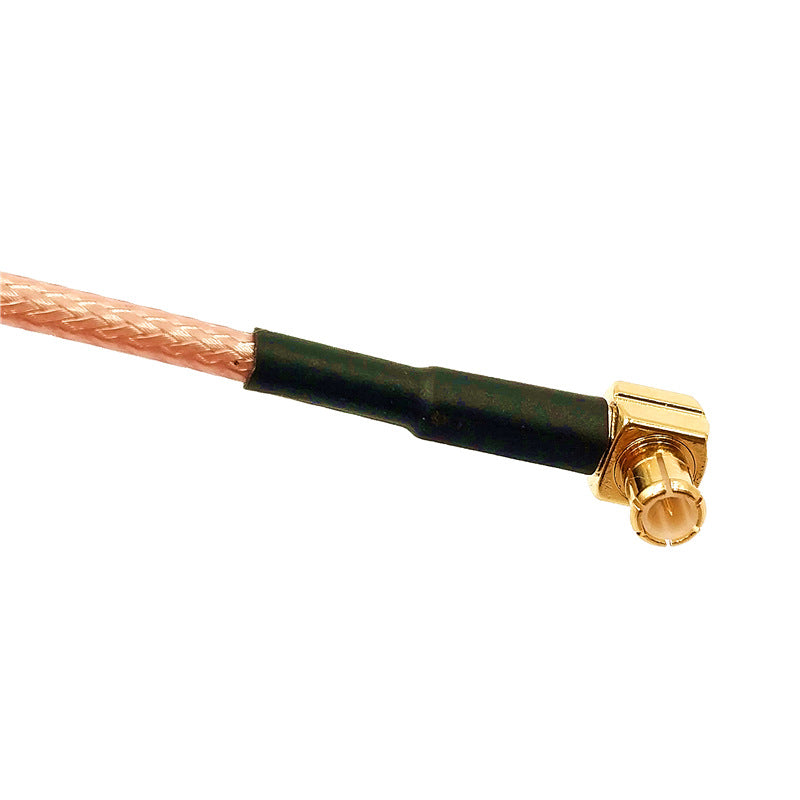

MCX Male to MCX Female RG316 Coaxial Cable

Model Numer:FT-316MCXJK01

Cable Type: RG316 Coaxial Cable

Frequency Range:DC/6GHz

VSWR.: ≤1.3

Out Impedance: 50 ohm

Return Loss: -11 dB Max

Working Voltage: 170V/50 Hz

Cable Length: 10-20-30-40cm or customized

Cable Color: Brown

Cable OD: 2.5mm

Connector: MCX Male to MCX Female

Conductor Material: 100% Bare Copper

Jacket: FEP+Fabric

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Insulation Resistance: 1000M ohm

Cable Loss: 1.34 dB / m @ 1GHz

Contact Resistance:

Center Contact: 10M ohm outer

Contact: 5M ohm

Admitted Power:2W

Durability: ≥500 cycles

Waterproof Rate:Waterproof Rate
