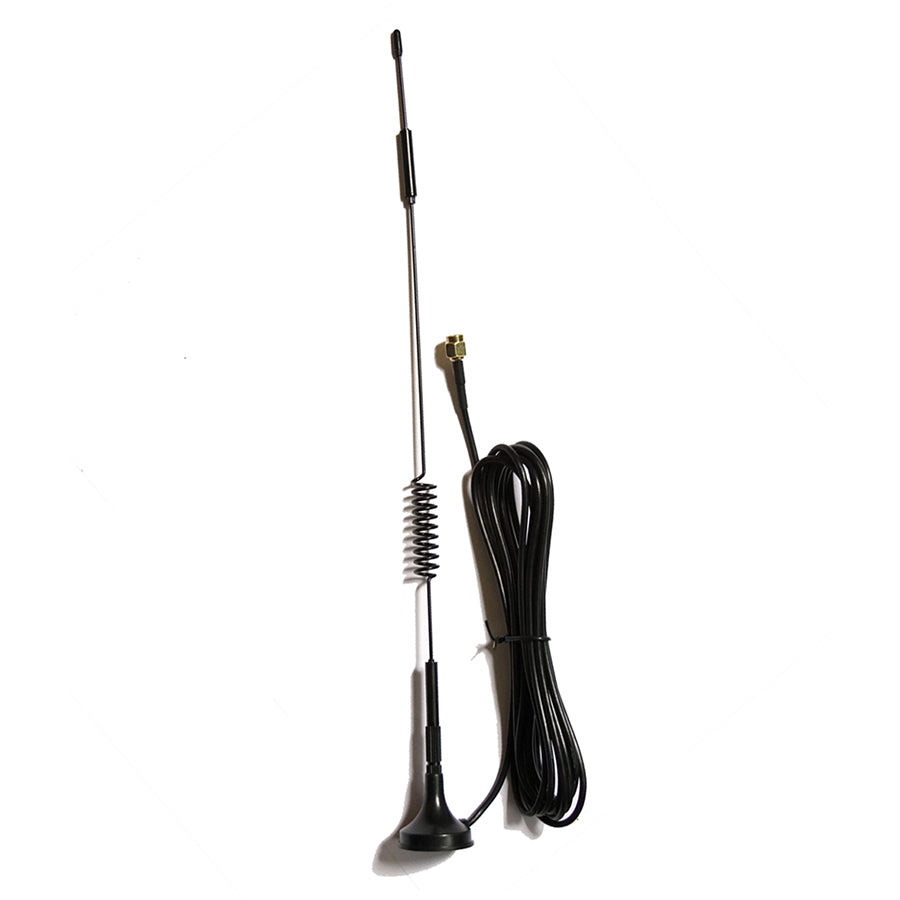

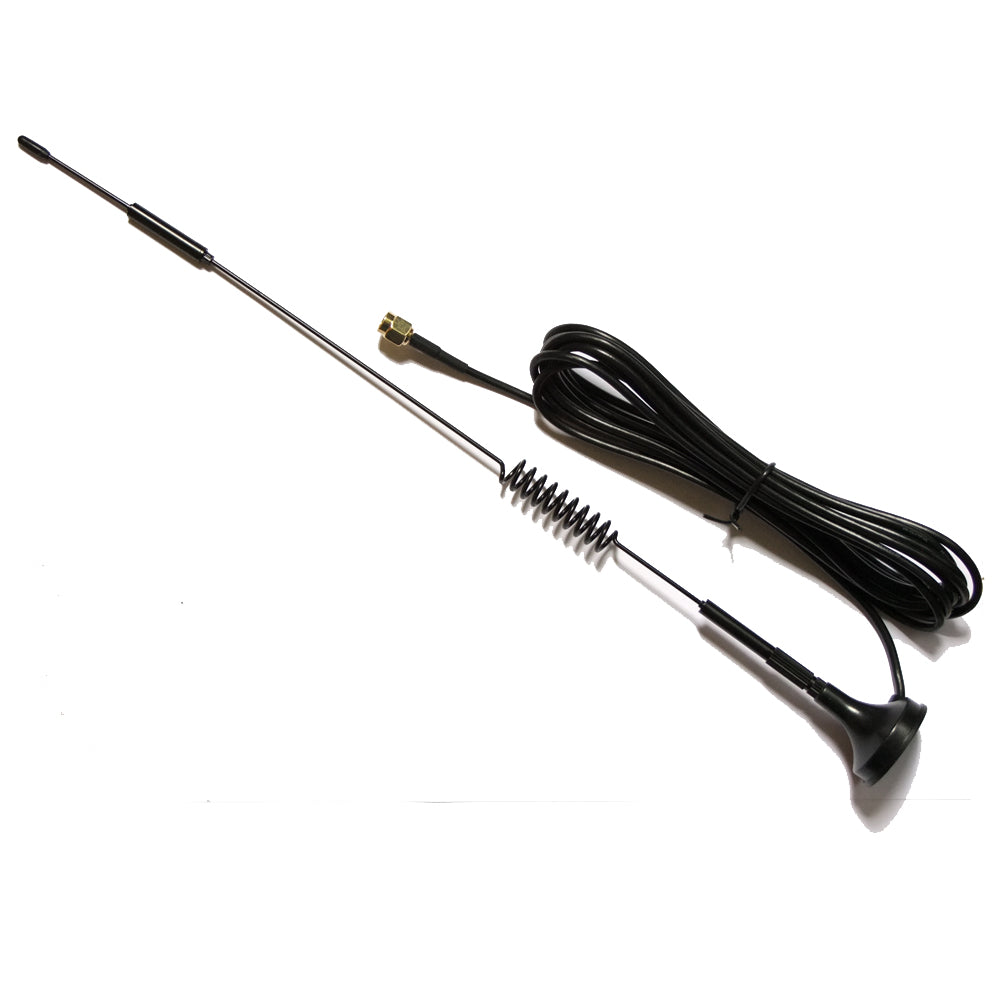

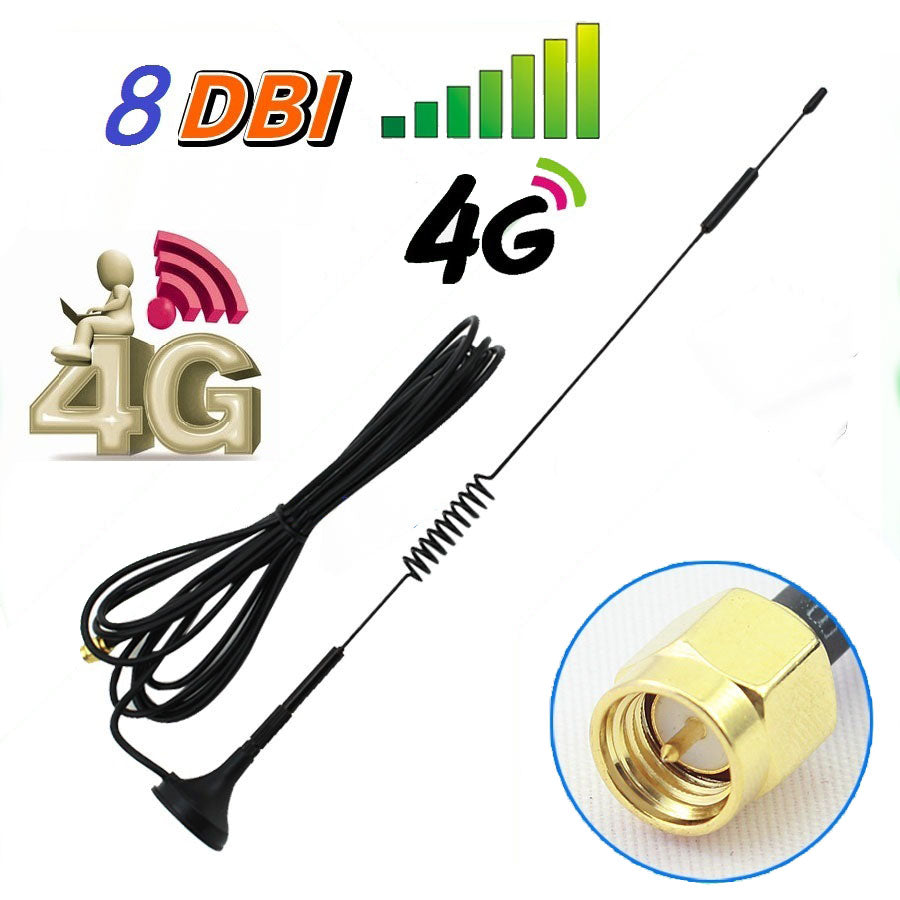

LTE 2.4G 3G 4G WCDMA GPRS GSM 8DBI High Gain Magnetic Mount Antenna

QTY:  10+/100+/500+/3000+/10000+

Price:  1.2/1.1/1.0/0.95/0.85 Inquire better price

Model Numer: FT-EXM4G01

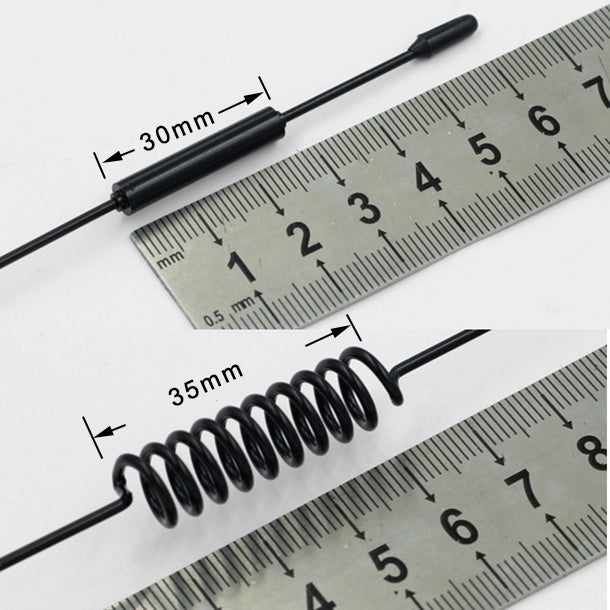

Dimension: 31cm

Frequence: 700MHz~2700MHz/4G LTE

Gain: 8 dbi

VSWR.: ≤1.6

Impedance: 50 ohm

Cable Loss: 0.3dbi Max

Polarization: Vertical

Coaxial Cable: RG174

Cable Length: 3Meters(default)/Customized

Connector: SMA Male(default)/RP SMA Male

Admitted Power: 2W

Antenna Material: Stainless Steel

Base Material: ABS,Black

Color: Black

Vibration: Sine sweep 1g(0-p), 10~50~10Hz each axis

Humidity: 95%~100%RH

MTBF=1×10-6/pc.hr: 40°C±5°C, 2000pcs  For 480h

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 80℃

Certificates: ROHS
