High Performance SMA GPS GSM Combined Antenna 2 in 1 Circular 4G GPS Antenna

QTY:  10+/100+/3000+/5000+

Price:  3.45/3.25/3.05/Inquire better price

Model Numer: FT-EGPS02

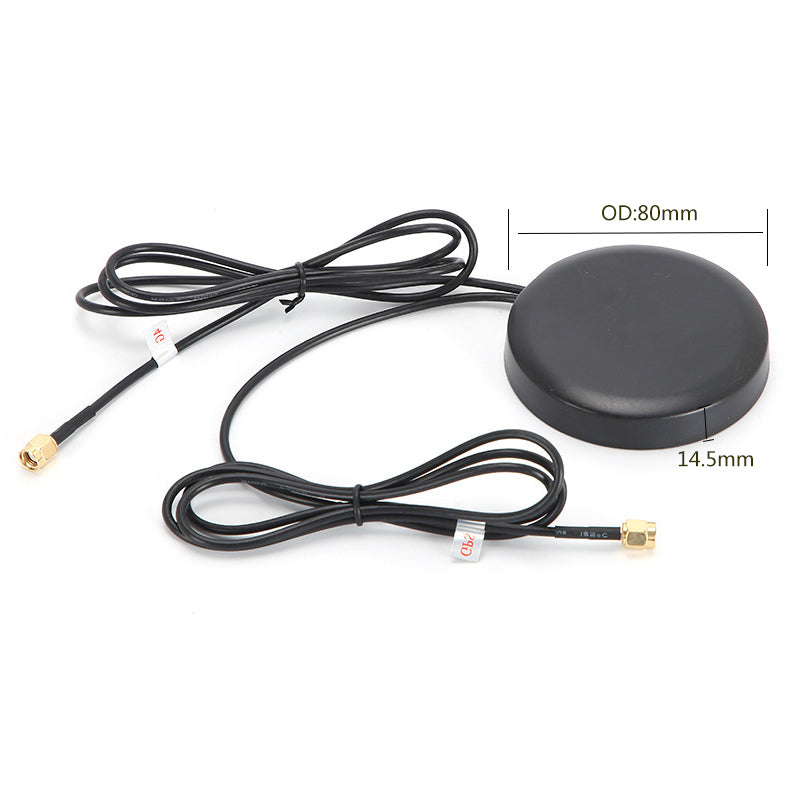

Dimension: 80*14.5mm

Frequence: 2400-2500/5150-5850(MHz)

GPS Frequency 1:1575.42（MHz）

GSM Frequency 2: 824-894MHz/1710-1990MHz（MHz）

Peak Gain:5dbi

VSWR.:1.5

Impedance:50ohm

Working Voltage:3-5V

Connector:SMA Male

Polarization:Right-handed circular polarization

Power capacity:20W

LAN characteristics (low noise amplifier)

Gain (Excluding RF Cable):28±2DBI

Noise Figure:>1.5dbi

Passband Ripple:±1.0DBI

Out of band suppression:F0±100MHz:35DBC Min

DC Voltage:3-5V

Direct Current:15Ma(DC-3.3V)

Output VSWR:2.0max

Weight:150g

Color:Black

Cable length:3M/Customzied

Operation Temperature:- 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃
