Shenzhen Faycent Technology Co.,Ltd

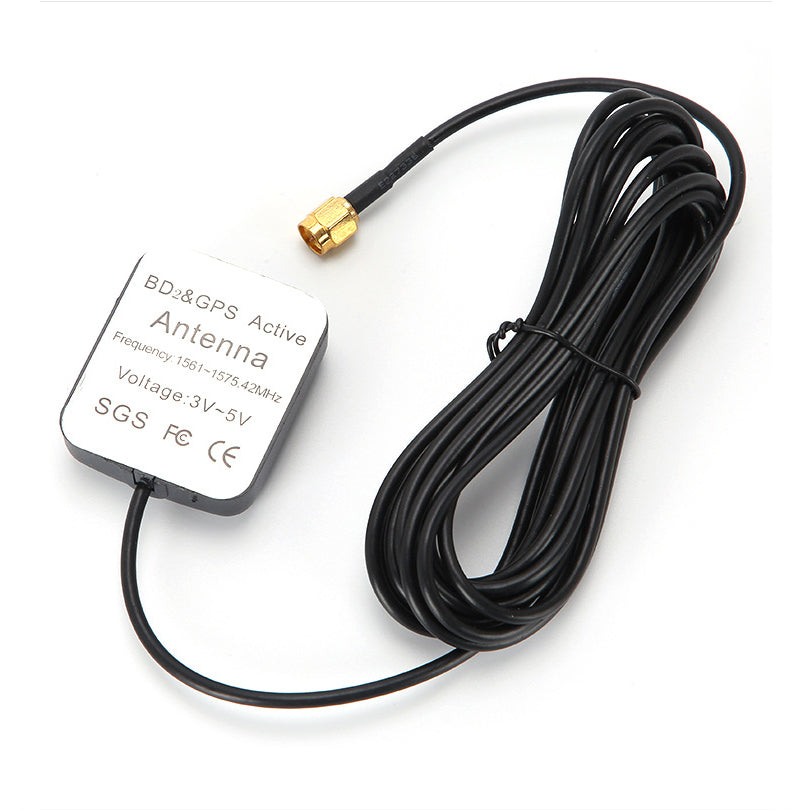

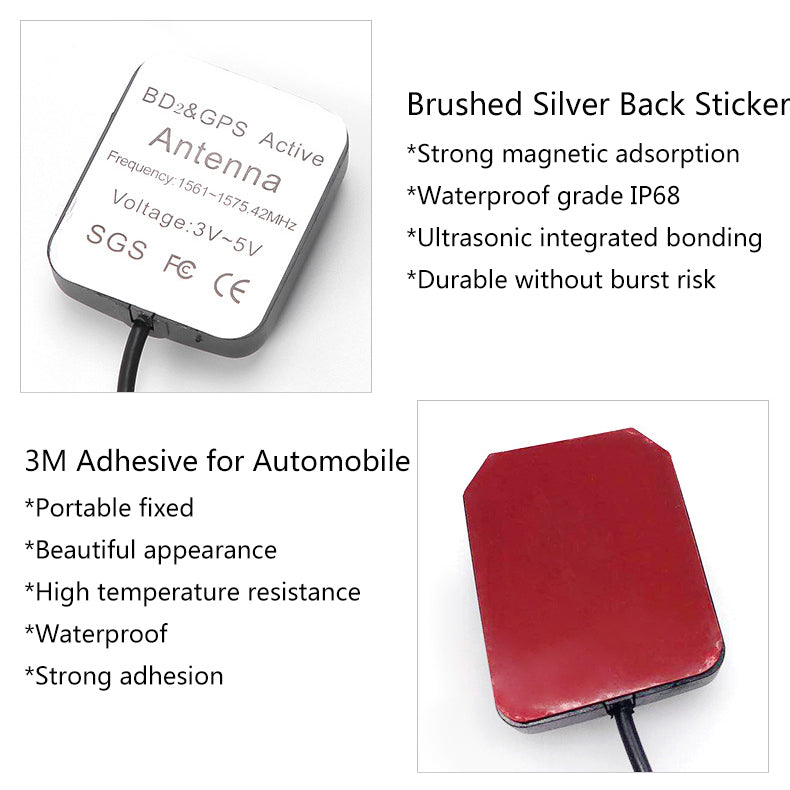

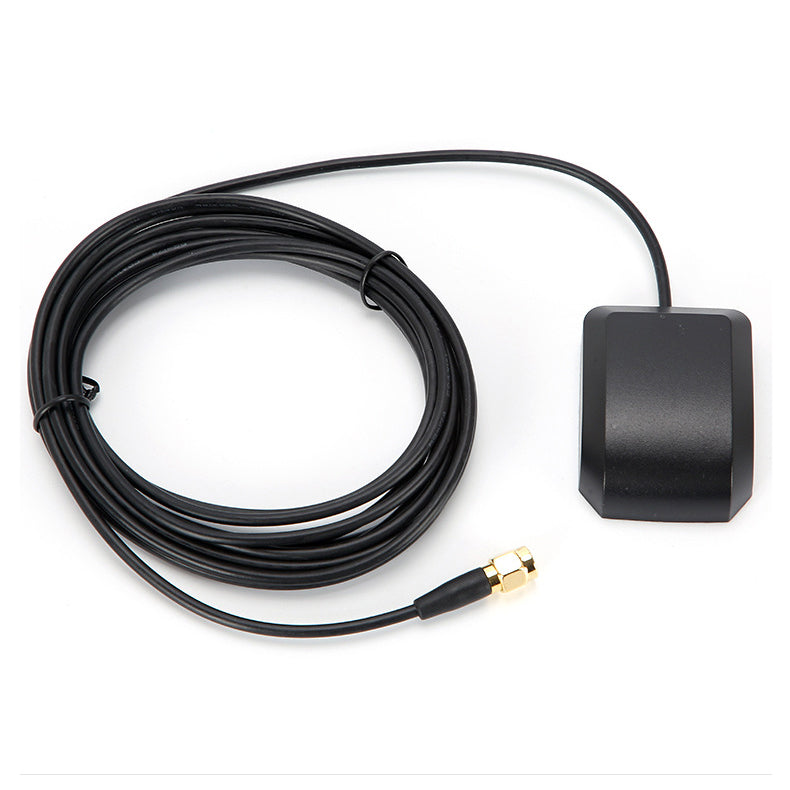

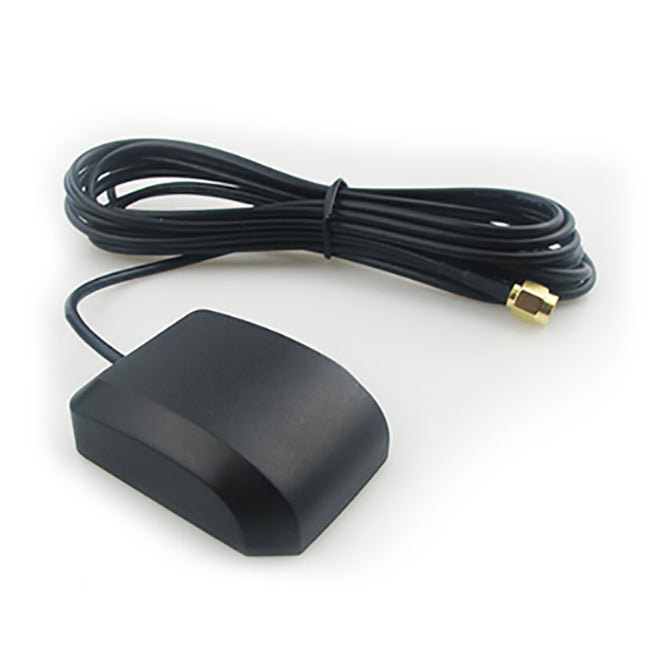

High Gain 30dbi Active Two-stage Amplification GLONASS Satellite Navigation&Positioning Antenna SMA Connector GPS BD Antenna
High Gain 30dbi Active Two-stage Amplification GLONASS Satellite Navigation&Positioning Antenna SMA Connector GPS BD Antenna
Couldn't load pickup availability
QTY: 10-99 /100-999 /1000-4999/5000+
Price: 1.6/1.55/1.5/1.45 Inquire better price
|
Model Number
|
FT-EGPS01S
|
|
Antenna characteristics
|
|
|
Size
|
50*38*16.7mm
|
|
Frequency 1
|
1575.042±1.023MHz
|
|
Frequency 2
|
1561.098±2.046MHz
|
|
Antenna Band 1
|
GPS-L1 >10MHz
|
|
Antenna Band 2
|
BD-B1 >10MHz
|
|
Peak Gain
|
5dbi
|
|
VSWR.
|
1.5
|
|
Impedance
|
50ohm
|
|
Working Voltage
|
3-5V
|
|
Connector
|
SMA Male Straight(Default)
|
|
Polarization
|
Omnidirectional
|
|
Power capacity
|
20W
|
|
LAN characteristics (low noise amplifier)
|
|
|
Gain (Excluding RF Cable)
|
28±2DBI
|
|
Noise figure
|
>1.5dbi
|
|
Passband ripple
|
±1.0DBI
|
|
Out of band suppression
|
F0±100MHz:35DBC Min
|
|
DC voltage
|
3-5V
|
|
Direct current
|
15Ma(DC-3.3V)
|
|
output vswr
|
2.0max
|
|
Weight
|
61g
|
|
Color
|
Black
|
|
Cable length
|
3M(Default)/Customized
|
|
Operation Temperature
|
- 40℃ ~ + 85℃
|
|
Storage Temperature
|
- 40℃ ~ + 85℃
|
Price
Price
MOQ:2PCS
Price:Large Quantity, Competitive Prices.
Service
Service
Customization Available Based on Your Designs/Samples
Fast Shipping Guaranteed
Quality Assurance
Premium After-Sales Service
