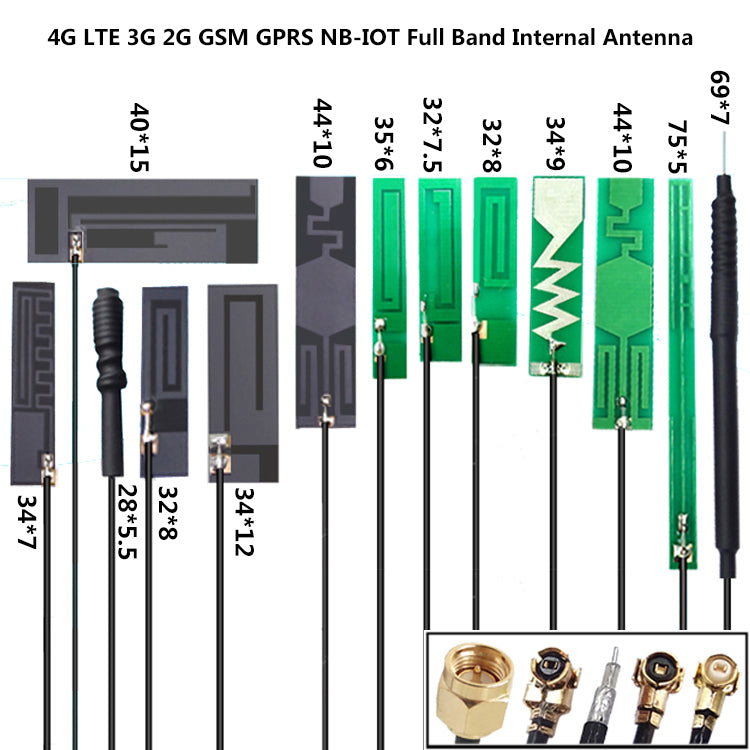

Full Frequence Full Dimension 4G LTE 3G 2G GSM GPRS NB-IOT PCB/FPC Antenna

QTY:  10+/100+ /500+ /2000+/ 5000+

Price:  0.6/0.55/0.45/0.41/0.39 Inquire better price

Model Numer: FT-4GFPCBX

Dimension: Various dimensions,Check and tell us.

Frequence: 700-960M,1710-1800M,1800-1990M,1990-2700MHz

Gain: 5/6/7/8 dbi

VSWR.: ≤1.2

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default),RG174 or customized

Cable Length: 150mm(default) or customized

Connector: IPEX/U.FL(default)/Welding/IPEX3/MHF4/SMA

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: 2G 3G 4G Wireless Network Card No-lot module GSM900 Module GPRS Mobile Internet of Things Data Transmission Equipment.
