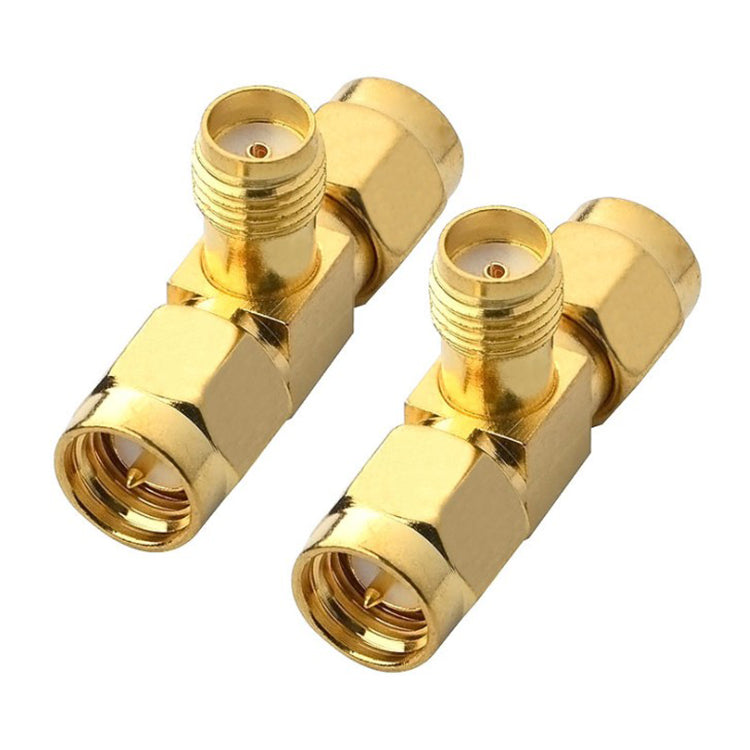

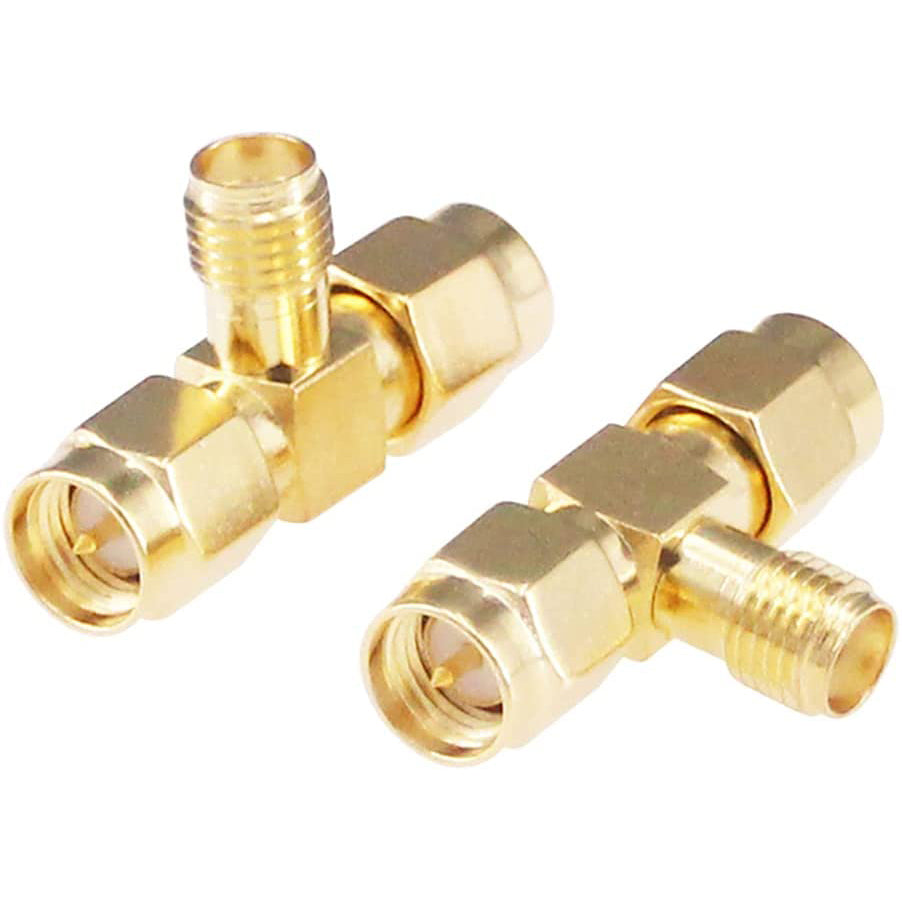

Antenna Adapter SMA Female to Dual SMA Male Connector T Type 3 Way Splitter Antenna Converter

QTY:  20+ /100+ /1000+/ 3000+

Price:  0.85/0.78/0.7/ Inquire better price

Model Number:FT-SMAJKJ

Vibration:MIL-STD-202,Method 213

Frequency: DC~12.4GHz

Working Voltage: 335V max

Withstand Voltage: 1000V rms

Impedance: 50ohm

Center Contact:≤ 3 mΩ

Outer Contact≤ 2 mΩ

Insulation resistance:≥ 5000 MΩ

Insertion loss: ≤0.15 dB/6GHz

VSWR: ≤1.20+0.003f

Durability(mating):≥500times(cycles)

Shell: Brass,gold plated

Contact pin:Brass,gold plated

Socket:beryllium,gold plated

Elastic contact:beryllium,gold plated

Operation Temperature:-65~+165°C (PE Cable -40~+85°C)
