900mhz 1800mhz Internal Spring Antenna 2.5dbi Fine Copper GSM Spiral Antenna Smart Remote Control Antenna

QTY:  10+ /1000+ /5000+/10000+

Price:  0.2/0.18/0.15/0.11 Inquire better price

Model Numer: FT-3GS05W

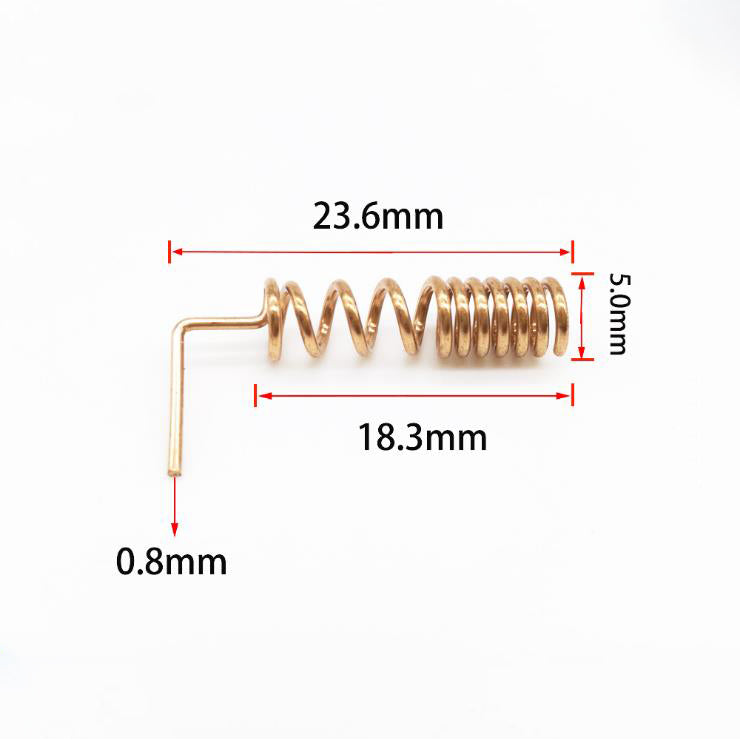

Dimension: 23.6*5.0MM

Frequence:800-900-1800-1900-2170(MHz)/3G

Gain: 2.5-3 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Cable Loss: 0.3dbi Max

Polarization: Vertical

Connector: Welding

Admitted Power: 2W

Outter Material: Copper

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 80℃

Certificates: ROHS
