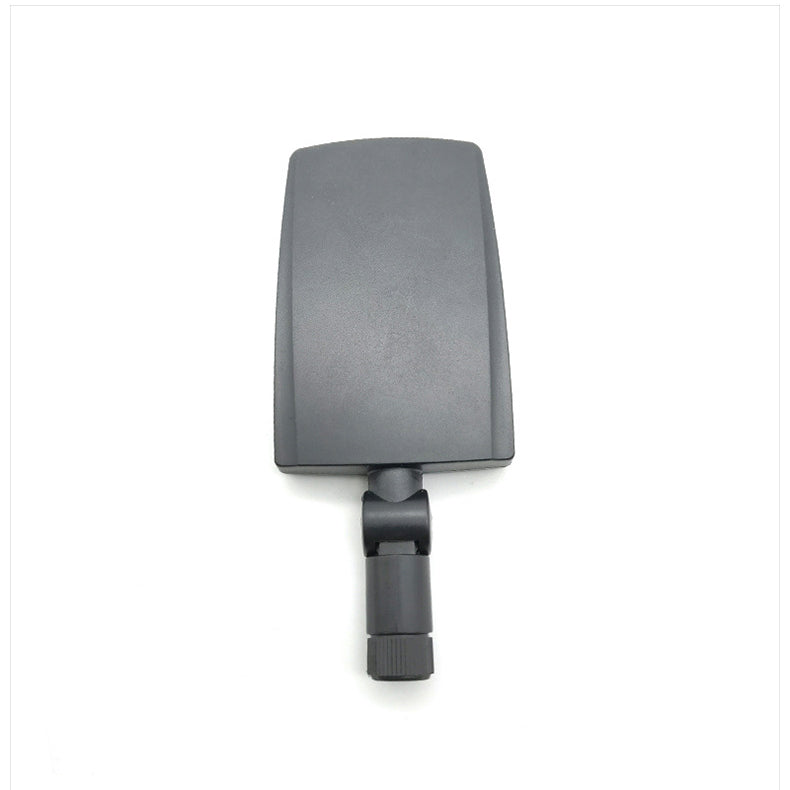

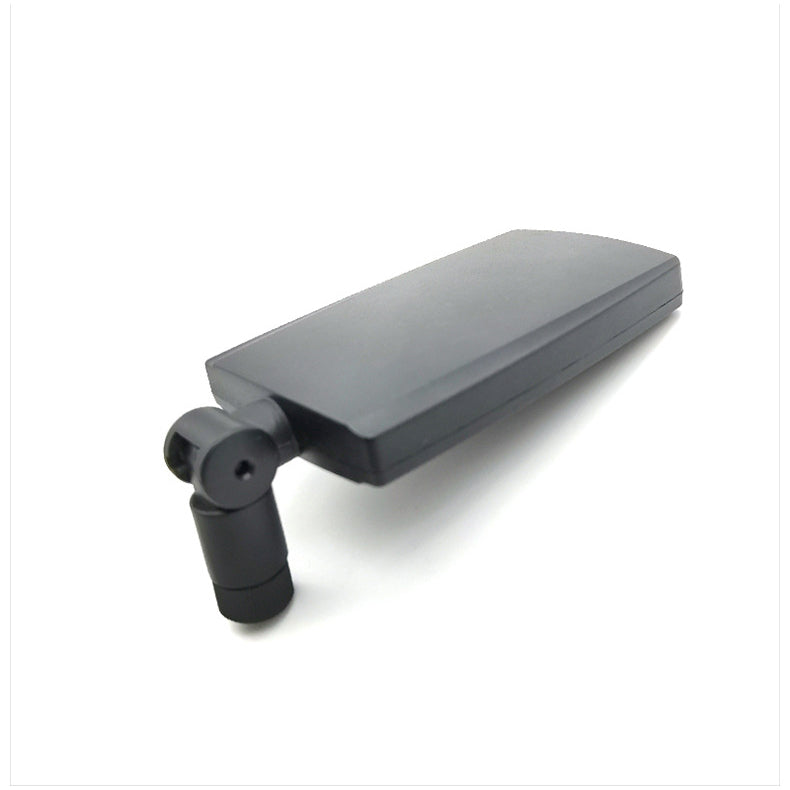

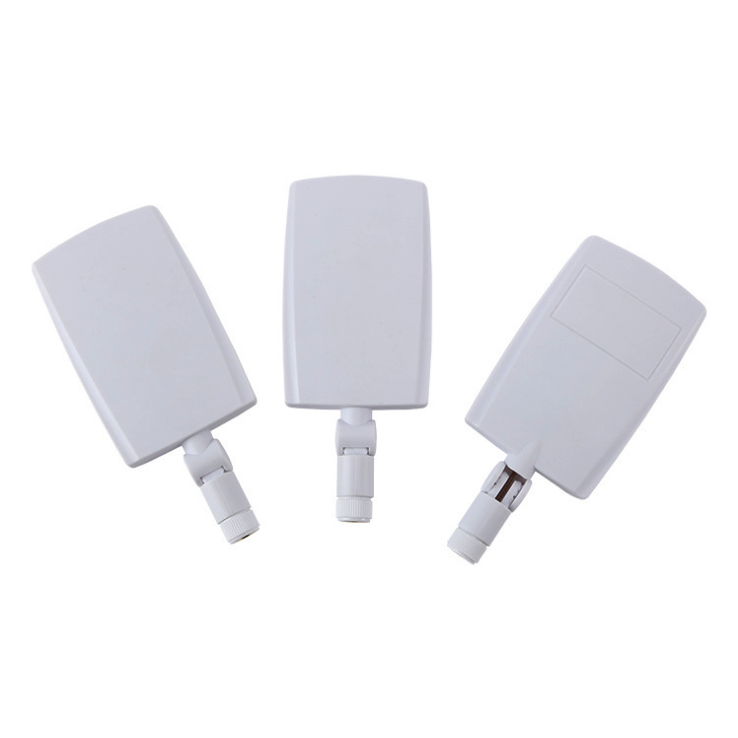

8DBI 5G 4G 3G Folding NB-IoT Remote Control Antenna Enhancer Board UAV Antenna for Phantom 3SE/4 PRO

QTY:  2-50/ 51-299/ 300-2999/ 3000+

Price:  1.9/1.8/1.7/Inquire better price

Model Numer: FT-EX4G07

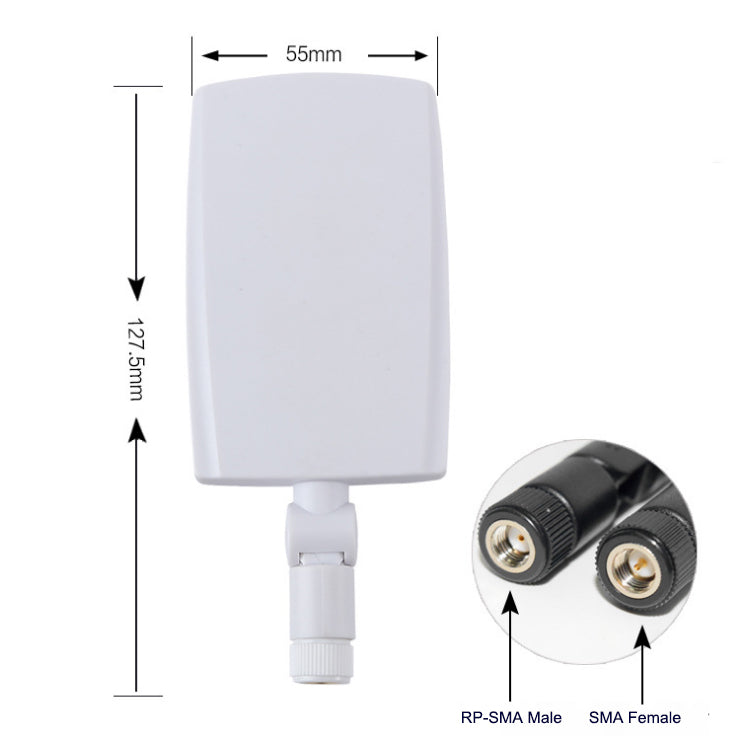

Dimension: 127.5*55mm

Frequence: 700MHz~2700MHz

Gain: 8 dbi

VSWR.: ≤2.0

Impedance: 50 ohm

Cable Loss: 0.3dbi Max

Working Voltage: 5V

Polarization: Linear Vertical

Coaxial Cable: RG178

Connector: SMA Female/ Male

Input Power Rate: 10W

Application for device: Phantom 3SE/4 PRO

Antenna Inner Material: PCB

Outter Material: ABS

Operation Temperature: - 20℃ ~ + 65℃

Storage Temperature:- 30℃ ~ + 75℃

Certificates: ROHS
