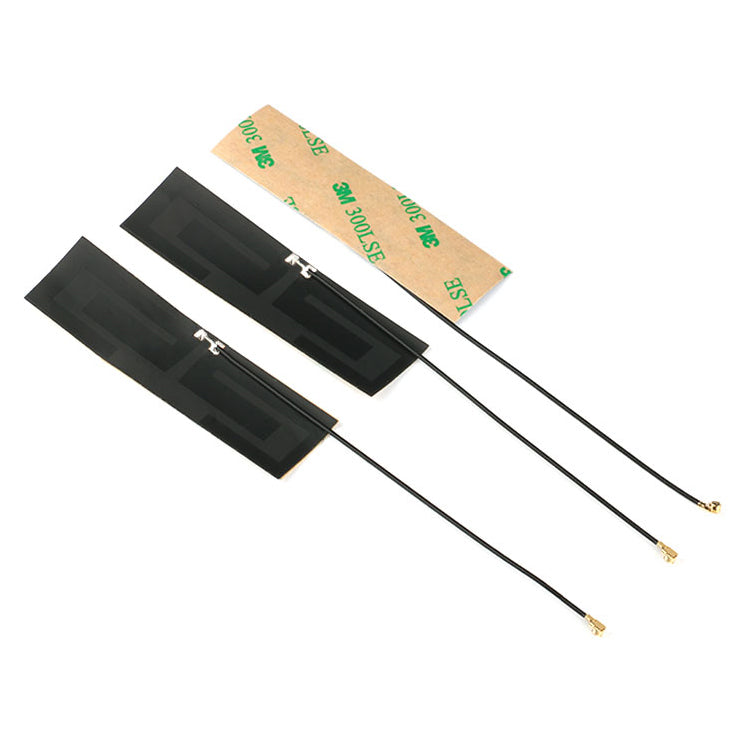

80*22mm GSM GPRS 2G 3G 4G LTE FPC Antenna CRC9/TS9/SMA Connector

QTY:  100+/200+/3000+/10000+

Price:  0.8/0.75/0.72/0.65 Inquire better price

Model Numer: FT-4GFPC-02P

Dimension: 80*22mm

Frequence: 800~960mhz , 1710mhz~2700mhz

Gain: 8 dbi

VSWR.: ≤1.2

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default),RG174 or customized

Cable Length: 50-100-150mm(default) or customized

Connector: CRC9(default) & TS9

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: 2G 3G 4G Wireless Network Card No-lot module GSM900 Module GPRS Mobile Internet of Things Data Transmission Equipment.
