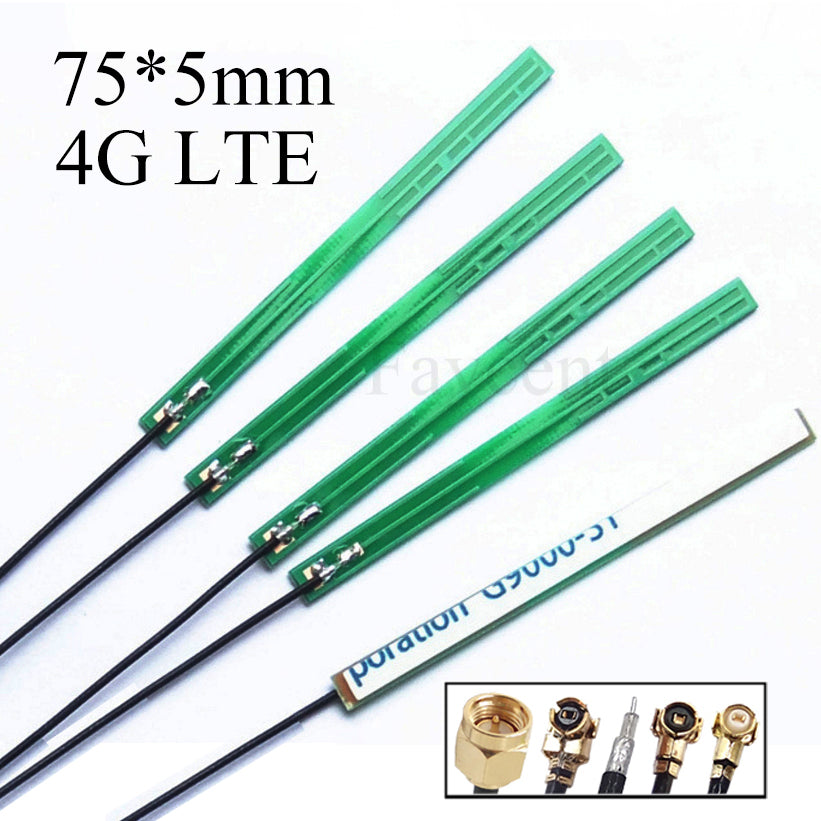

75*5mm 5DB High Gain LTE 4G 3G GSM GPRS nb-lot Full Band Internal PCB PCB Antenna with RG1.13 Cable IPEX U.FL Connector

QTY:  100+ /500+ /2000+/ 5000+

Price:  0.49/0.45/0.41/0.39 Inquire better price

Model Numer: FT-4GPCB-05

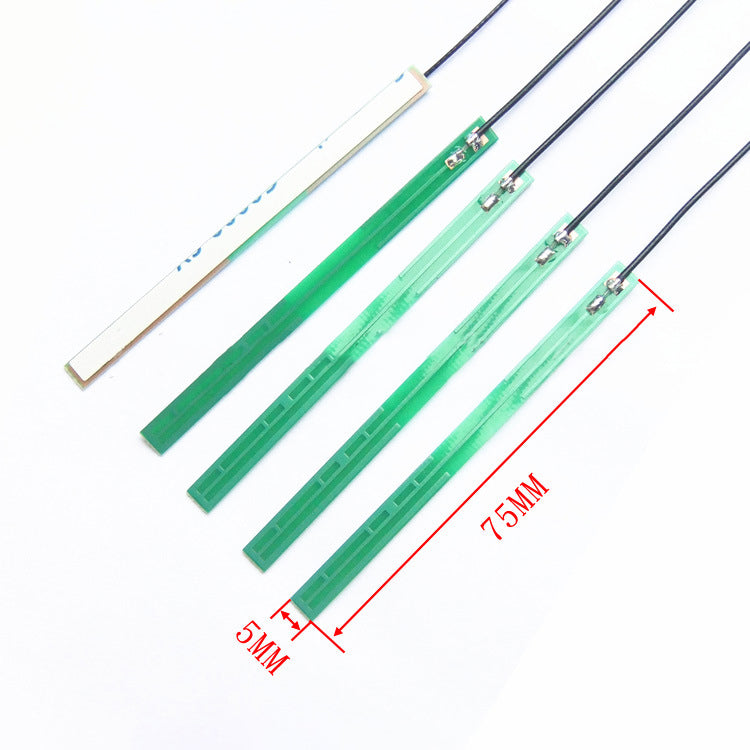

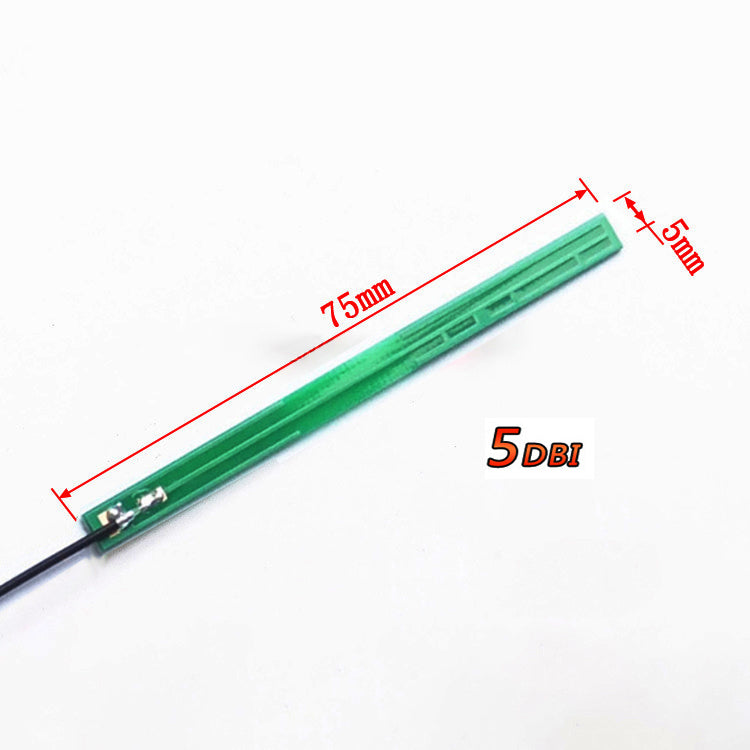

Dimension: 75*5*0.4mm

Frequence: 780-960MHZ,1710-2700MHZ

Gain: 5 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default)/RG174/RG178/ customized

Cable Length: 150mm(default) or customized

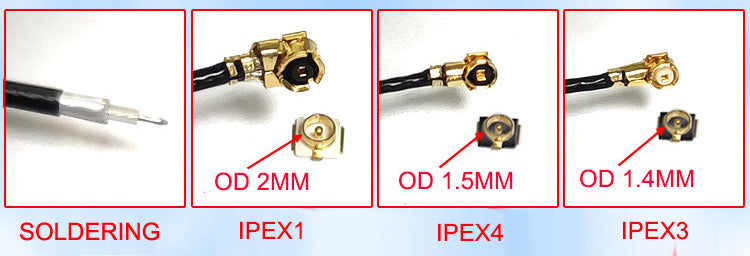

Connector:

IPEX1(U.FL)(default)/ Ipex3/Ipex4/Welding/SMA Male/MMCX

Certificates: ROHS

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: 2G 3G 4G Wireless Network Card No-lot module GSM900 Module GPRS Mobile Internet of Things Data Transmission Equipment.
