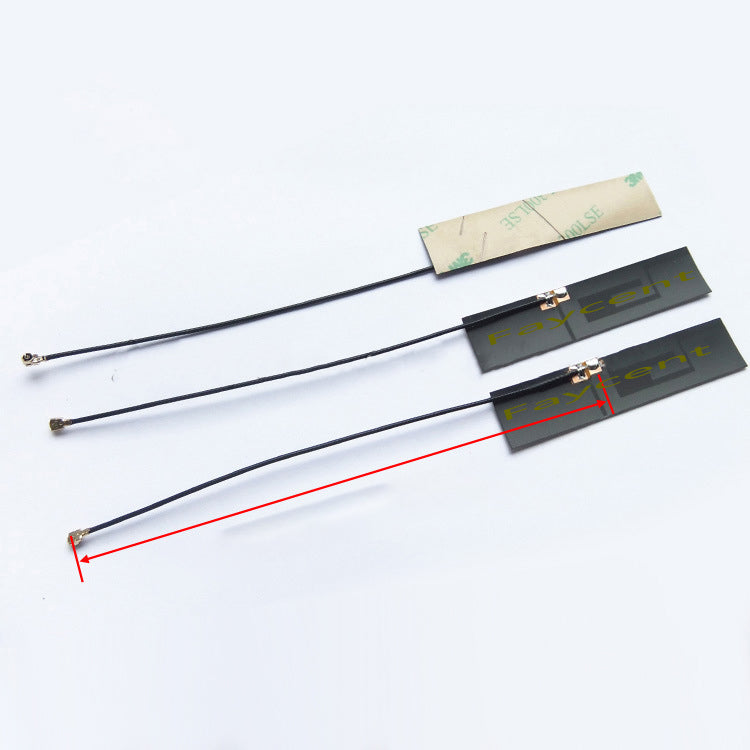

70*15mm GSM /800MHz / 2G / 3G / LTE / 4G / GPRS / WCDMA / NB-IOT Full Band Built-in FPC Patch antenna

QTY:  10+/100+/500+/3000+

Price:  0.55/0.52/0.49/Inquire better price

Model Numer: FT-4GFPC-04

Dimension: 70*15mm

Frequence: 824~960mhz , 1710mhz~2690mhz

Gain: 5 dbi

VSWR.: ≤1.2

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default),RG174 or customized

Cable Length: 50-100-150mm(default) or customized

Connector: IPEX/U.FL(default)/Welding/IPEX3/MHF4/SMA

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: 2G 3G 4G Wireless Network Card No-lot module GSM900 Module GPRS Mobile Internet of Things Data Transmission Equipment.
