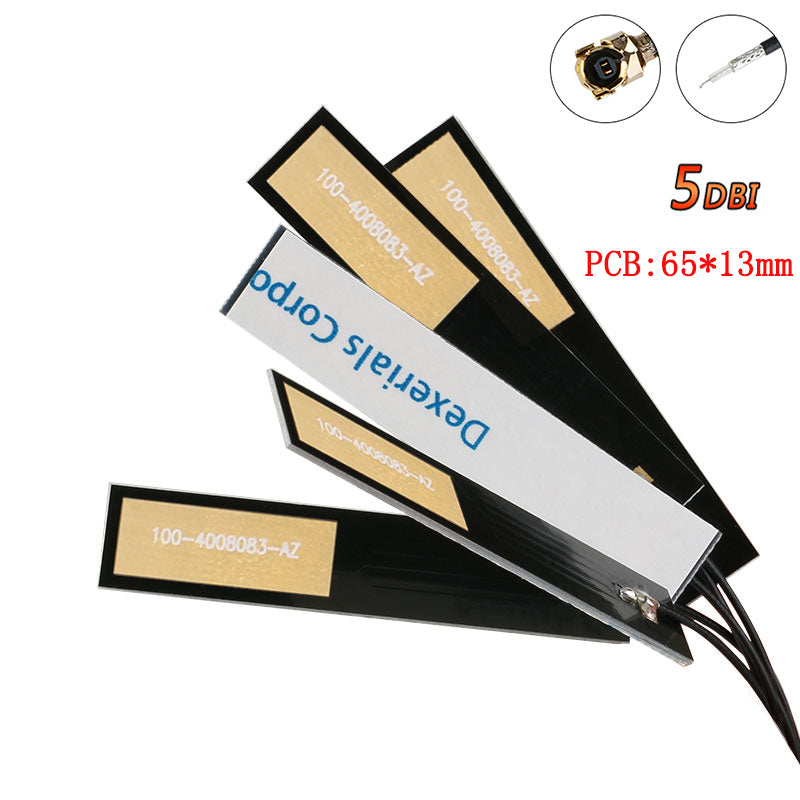

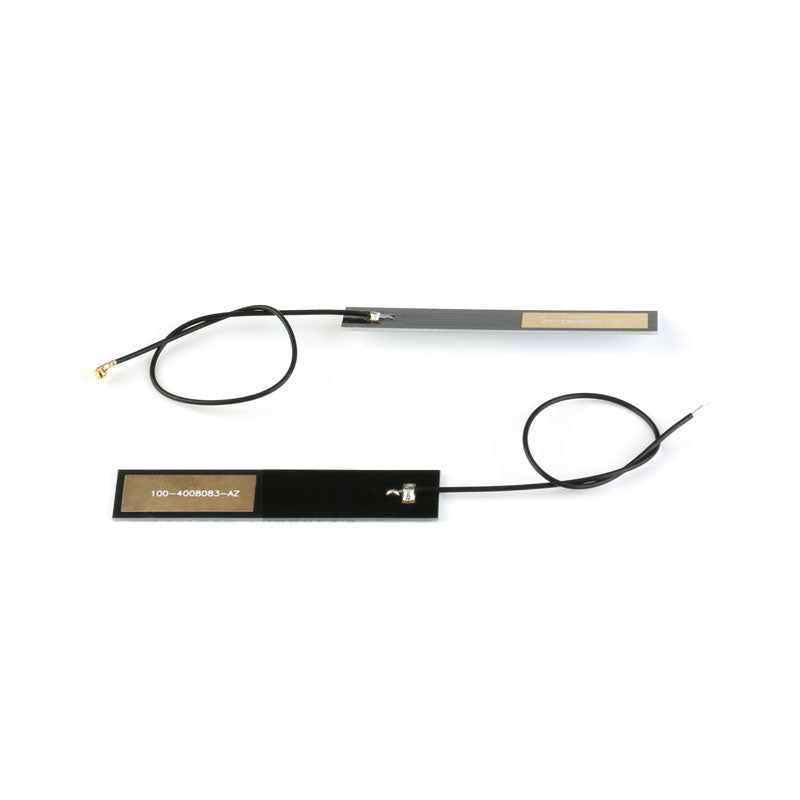

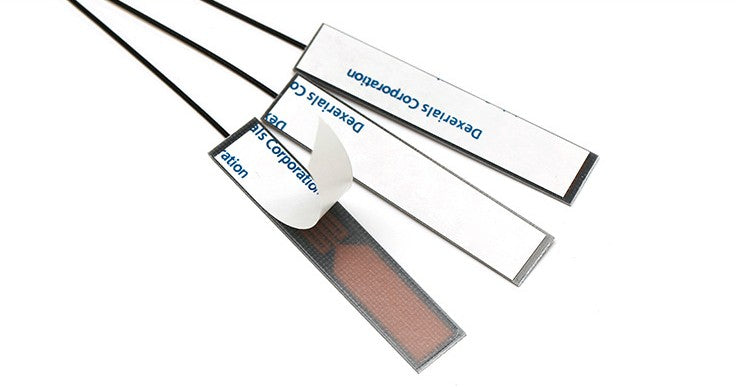

65*13mm GSM GPRS 2G 3G 4G LTE Nb-iot Communication PCB Antenna

QTY:  10+ /300+ /2000+/ 5000+

Price:  0.49/0.42/0.39/0.35 Inquire better price

Model Numer: FT-4GPCB-02

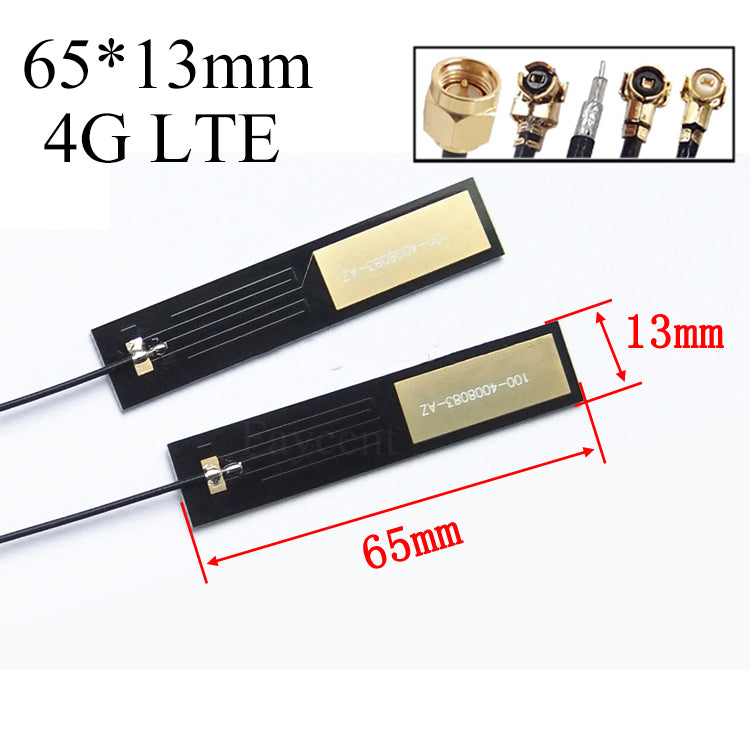

Dimension: 65*13mm

Frequence: 780-960MHz,  1710-1800MHz,

1800-1990MHz, 1990-2700MHz

Gain: 5 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default)/RG174/RG178/ customized

Cable Length: 50-100-150mm(default) or customized

Connector:

IPEX1(U.FL)(default)/ Ipex3/Ipex4/Welding/SMA Male/MMCX

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: 2G 3G 4G Wireless Network Card No-lot module GSM900 Module GPRS Mobile Internet of Things Data Transmission Equipment.
