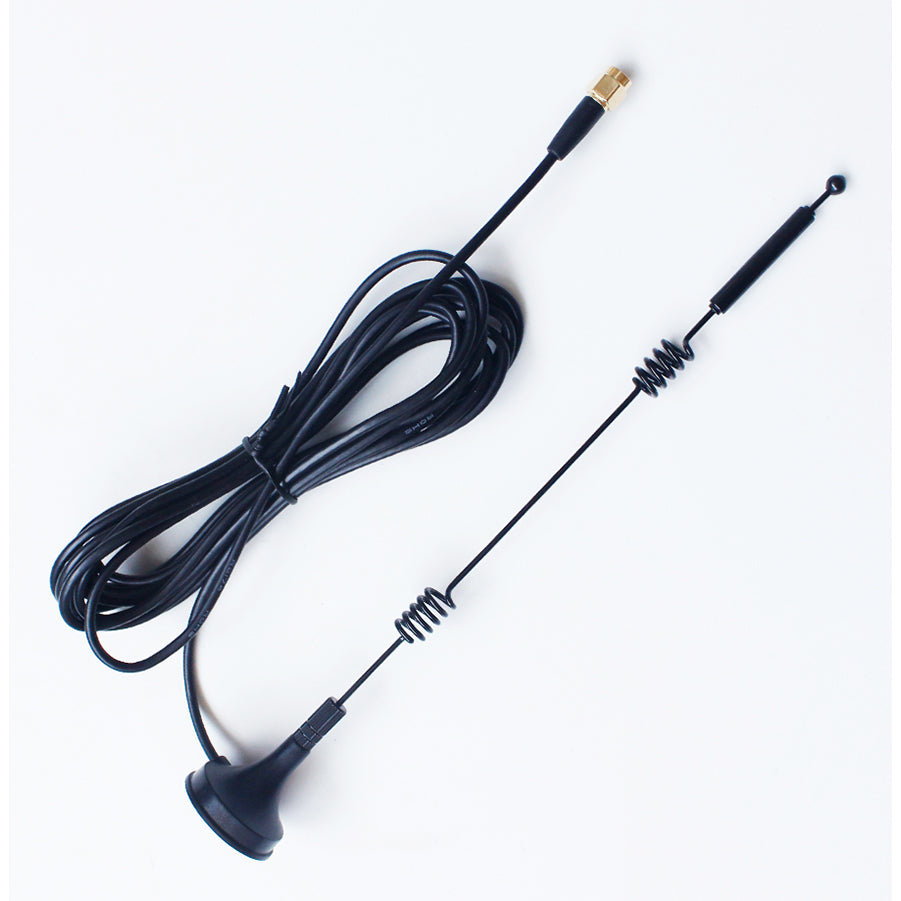

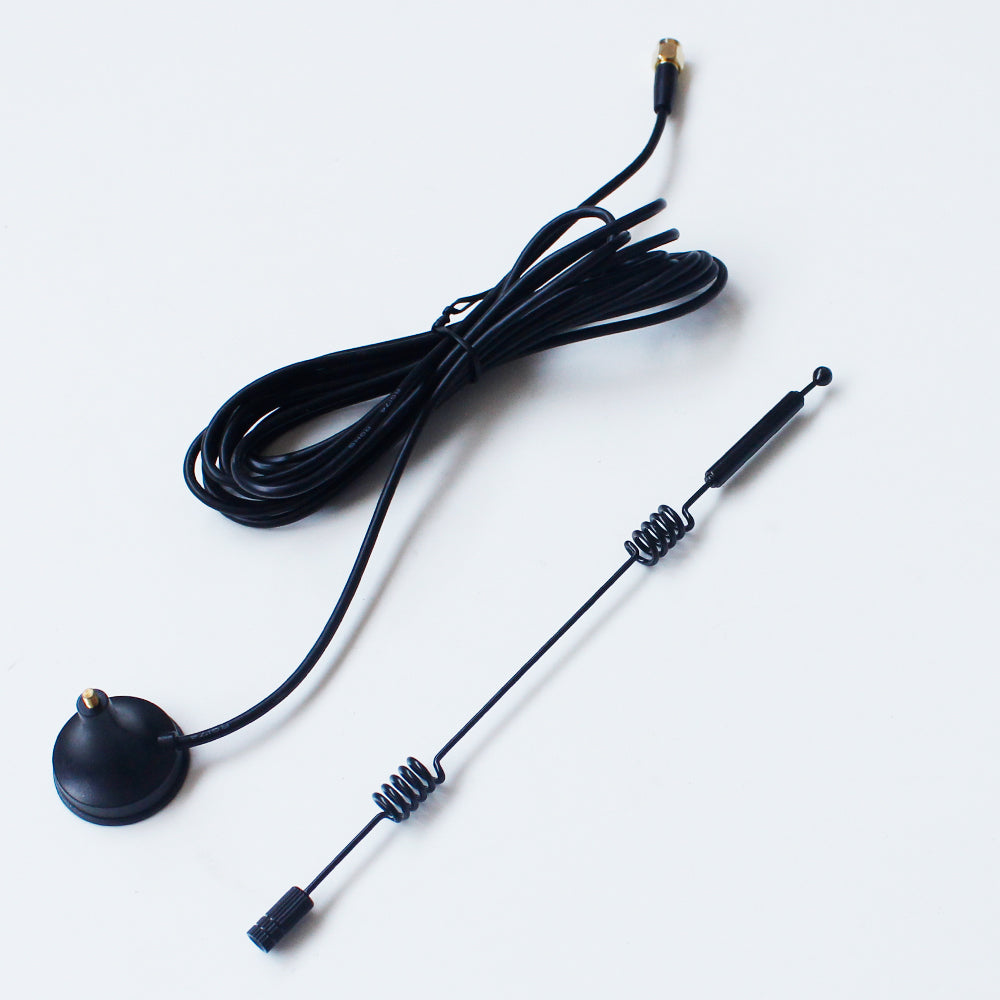

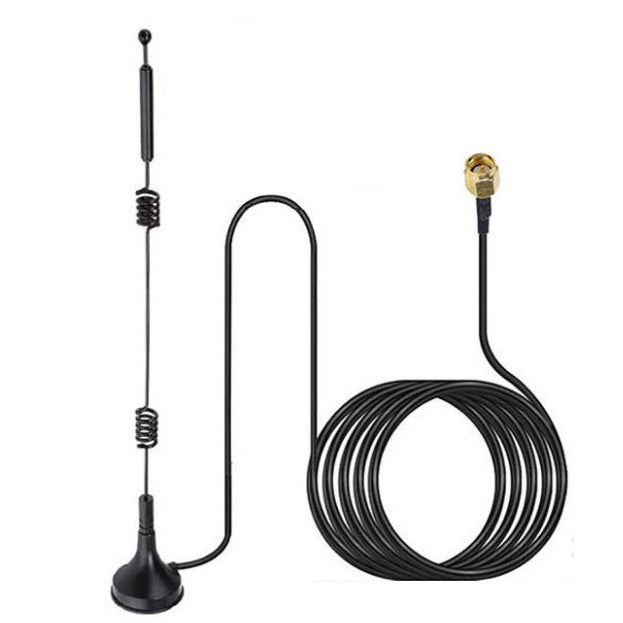

5G Small Magnetic Base Wireless Antenna SMA Connector Wireless Network Card 2.4G 5G 5.8g Dual Band Antenna
5G Small Magnetic Base Wireless Antenna SMA Connector Wireless Network Card 2.4G 5G 5.8g Dual Band Antenna
QTY: 10+ /100+ /3000+/5000+
Price: 1.55/1.5/1.45/Inquire better price
Model Numer: FT-EXM2458-02

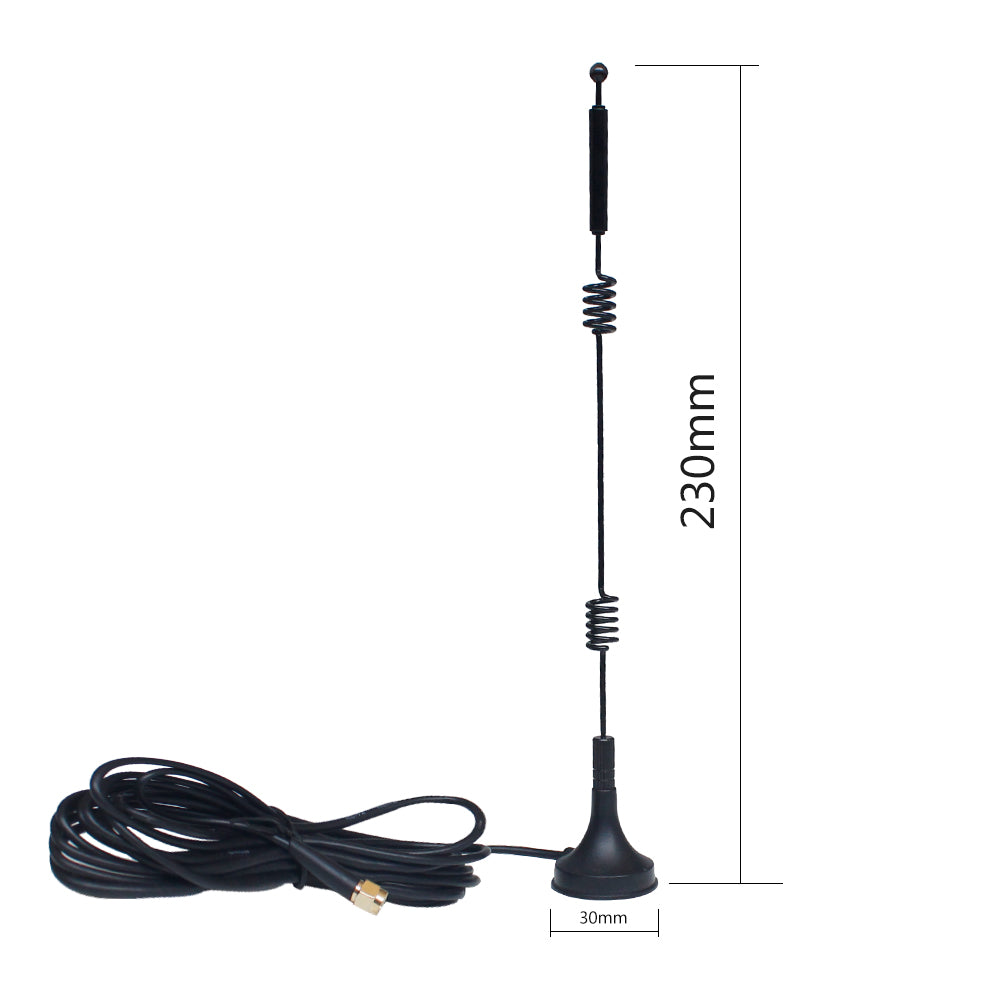

Dimension: 230mm
Frequence: 2400-2500MHz,4900-5900MHz
Gain: 10 dbi
VSWR.: ≤1.5
Impedance: 50 ohm
Cable Loss: 0.3dbi Max
Cable:RG174 OD2.5mm 3Meters(default)
Polarization: Vertical
Connector: SMA J(Default)/CRC9/Ts9
Admitted Power: 2W
Vibration: Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity: 95%~100%RH
MTBF=1×10-6/pc.hr: 40°C±5°C, 2000pcs For 480h
Radiation: Omni directional
Max wind speed: 200km/h
Outter Material: Stainless Steel
Color: Black(Default)
Application for Device:
1. EEE 802.11 b/g/n WLAN System
Operation Temperature: - 40℃ ~ + 85℃
Storage Temperature:- 40℃ ~ + 80℃
Certificates: ROHS
