433Mhz Straight Spring Antenna 433.92MHZ 3DBI Phosphor Copper Remote Controller Internal Helical Antenna

QTY:  10+ /1000+ /5000+/10000+

Price:  0.2/0.18/0.15/0.11 Inquire better price

Model Numer: FT-433S01Z

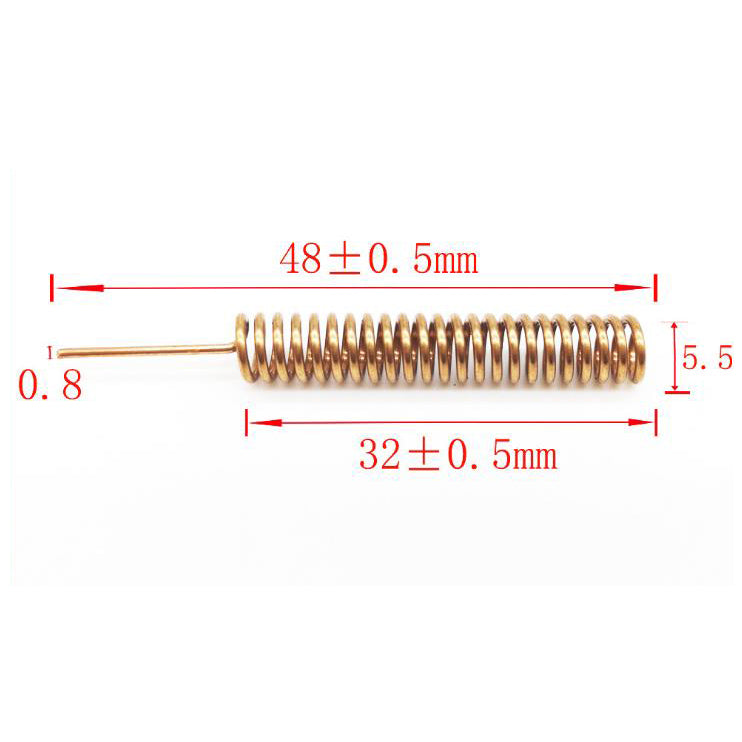

Dimension:48*5.5MM

Frequence:433.92MHZ

Gain: 2.5-3 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Cable Loss: 0.3dbi Max

Polarization: Vertical

Connector: Welding

Admitted Power: 2W

Outter Material: Copper

Connector Type:straight connector with welding end

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 80℃

Certificates: ROHS
