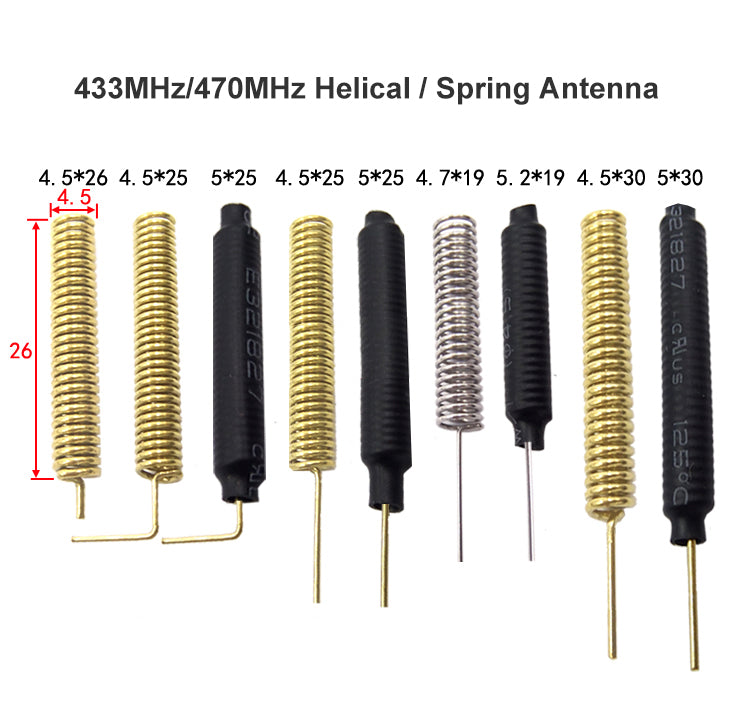

433.92mhz Spring Antenna Internal Spiral Antenna Wireless Transceiver Module Data Transmission 433MHz 470MHz Antenna

QTY:  10+ /100+ /3000+/5000+

Price:  0.2/0.18/0.15/0.11 Inquire better price

Model Numer: FT-433S

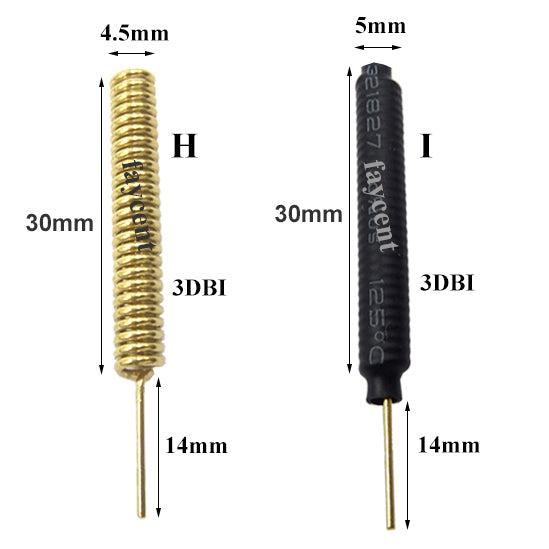

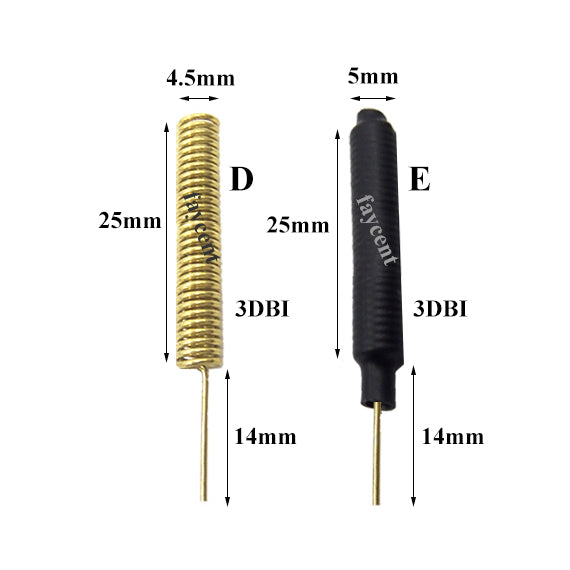

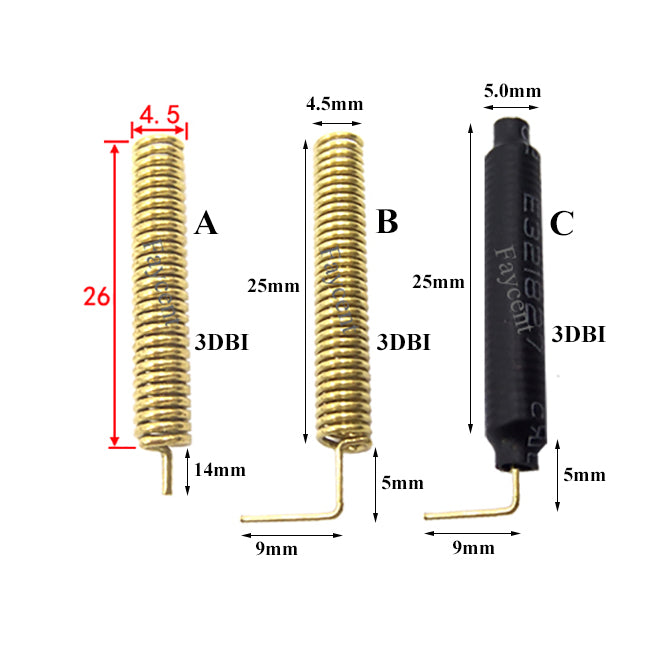

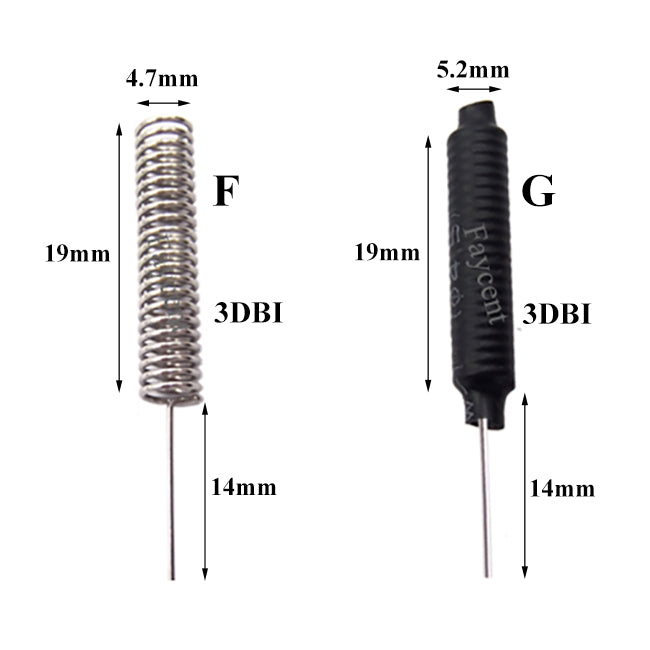

Dimension: Refer A/B/B/C/D/E/F/G/H/I

Frequence: 433/470MHZ

Gain: 3 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Cable Loss: 0.3dbi Max

Polarization: Vertical

Connector: Welding

Admitted Power: 2W

Outter Material: Copper

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 80℃

Certificates: ROHS
