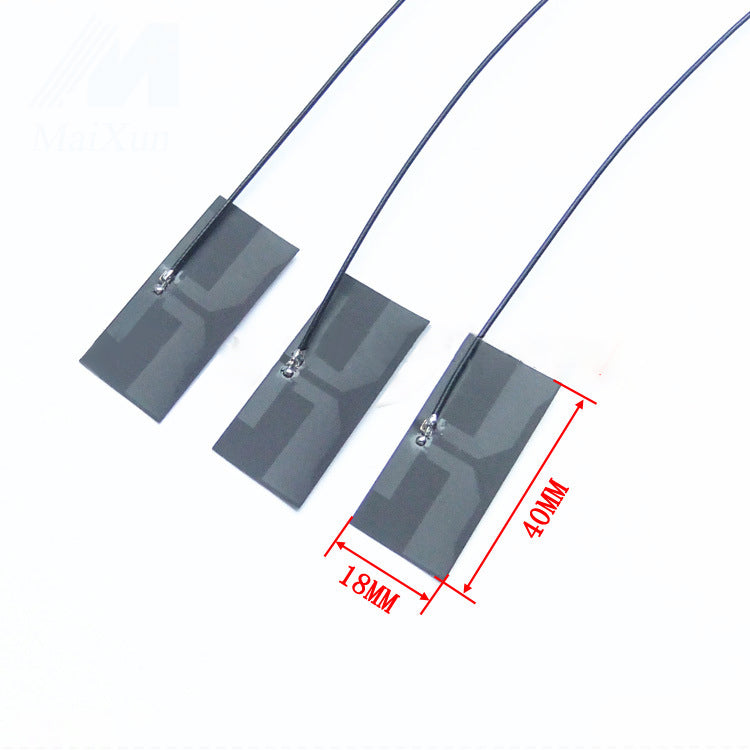

40*18mm 5G 5.8G 2.4G WiFi Dual Band Built-in FPC Antenna Bluetooth High Gain Omnidirectional Antenna IPEX

QTY:  10+ /50+/ 500+ /3000+/ 10000+

Price:  0.55/0.5/0.45/0.34/Inquire better price

Model Numer: FT-2458FPC04

Dimension: 40*18mm

Frequence: 2400-2500MHz,4900-5900MHz

Gain: 5 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default),RG174 or customized

Cable Length: 50-100-150mm(default) or customized

Connector: IPEX/U.FL(default)/Welding/IPEX3/MHF4/SMA

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: Wireless AP, Digital Photo Frame, Wireless IP Camera,Wirelss CDMA,Wireless TV, Smart TV, Wireless Internet Radio,Smart Phone,Set Top Box, Desktp PC, Notebook, Laptop, Wireless Digital Camera,Smart Home,Vending Machine.
