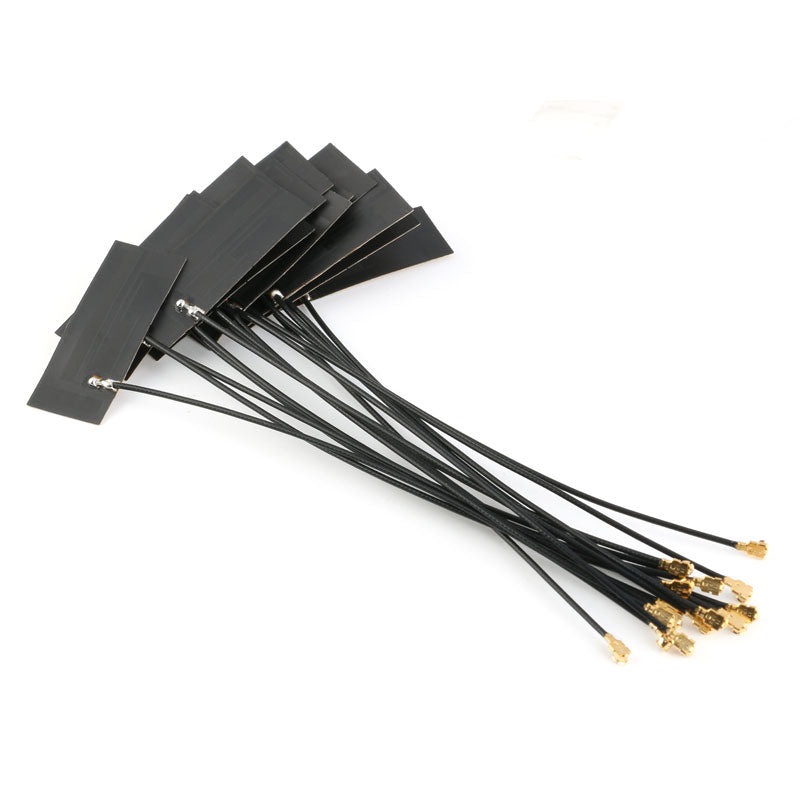

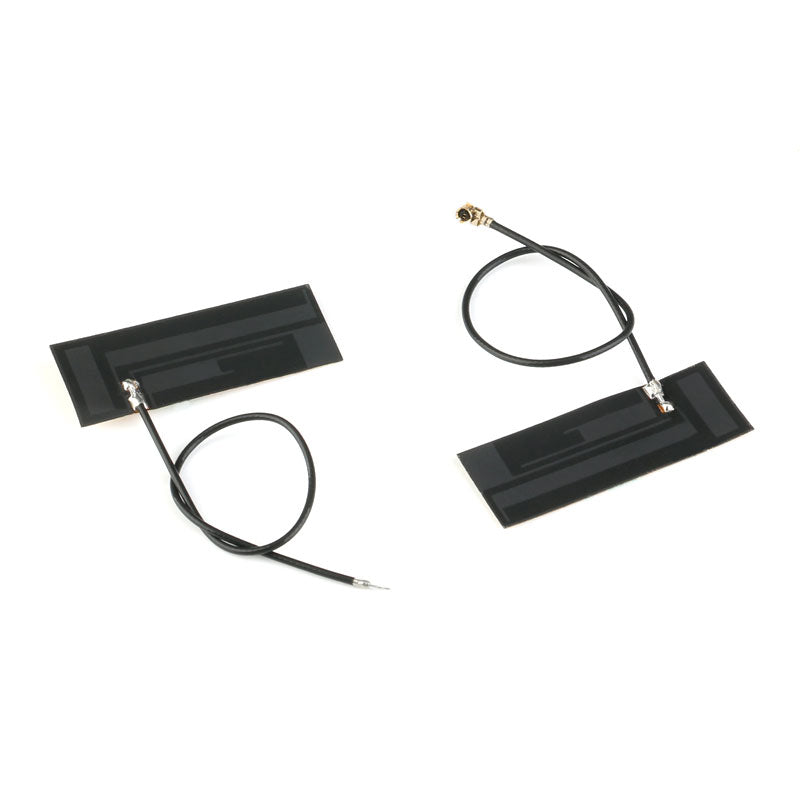

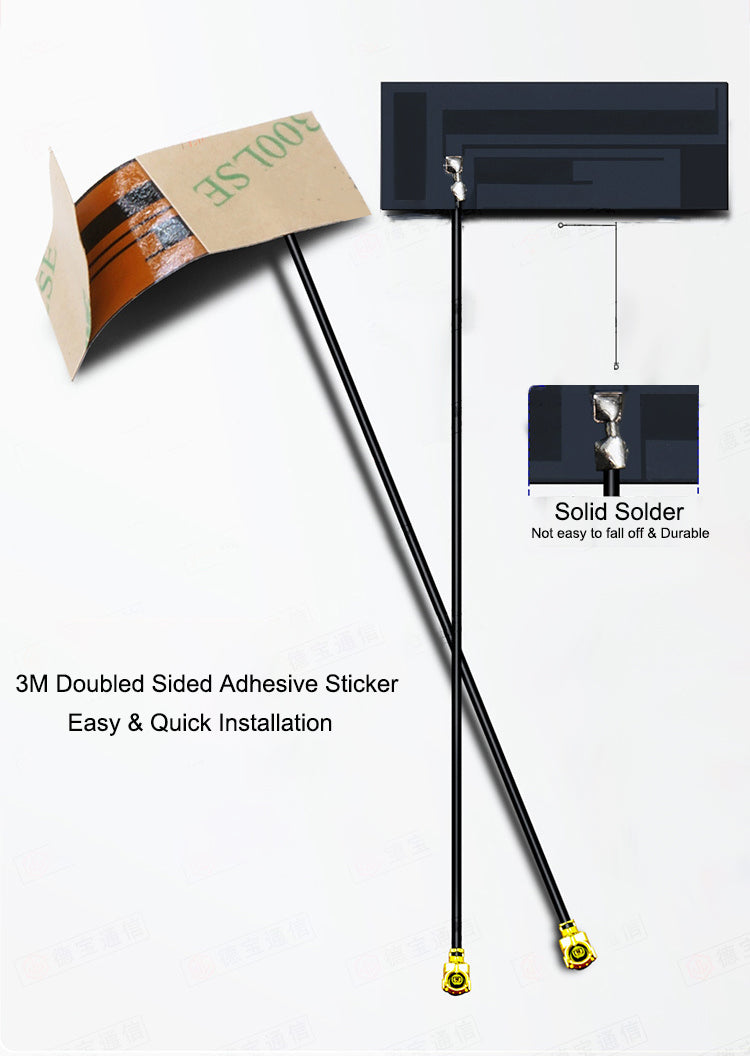

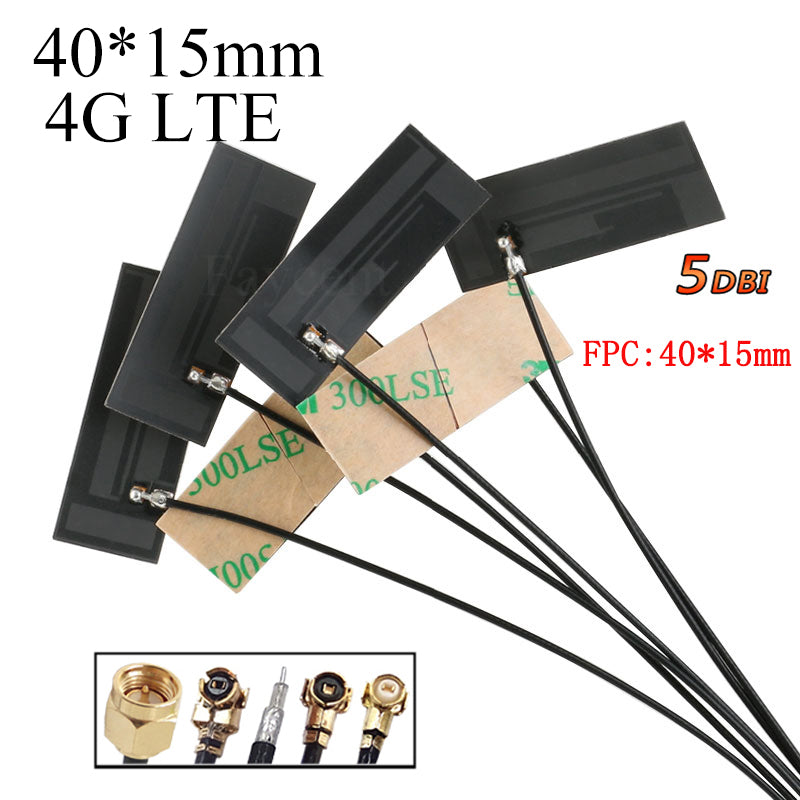

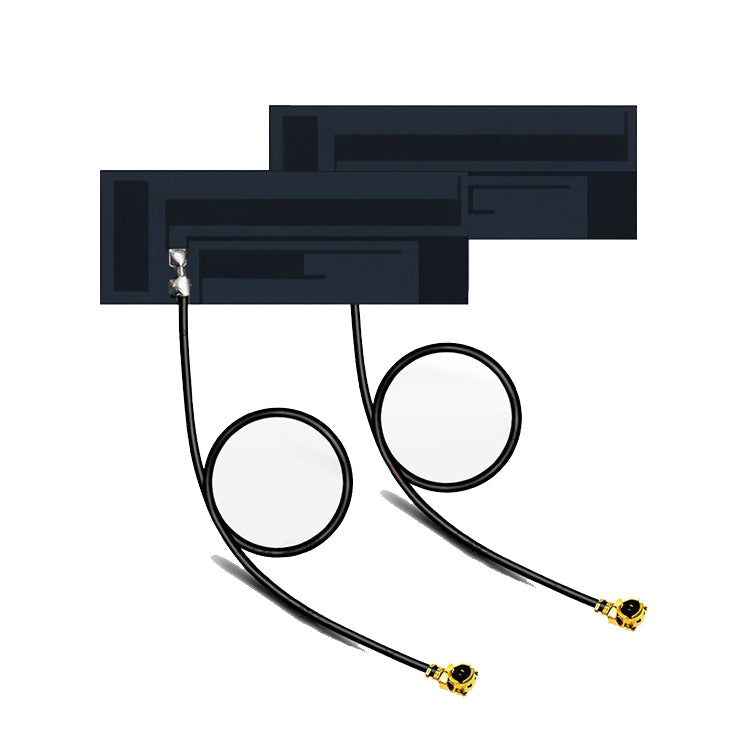

40*15mm GSM 2G 3G 4G CDMA WCDMA LTE U.FL Connector RG1.13 FPC Softboard Antenna

QTY:  10+/100+/500+/3000+/10000+

Price:  0.55/0.45/0.39/0.35/0.29 Inquire better price

Model Numer: FT-4GFPC-01

Dimension: 40*15mm

Frequence: 780~960mhz , 1710mhz~2700mhz

Gain: 5 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default),RG174 or customized

Cable Length: 150mm(default) or customized

Connector: IPEX/U.FL(default)/Welding/IPEX3/MHF4/SMA

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: 2G 3G 4G Wireless Network Card No-lot module GSM900 Module GPRS Mobile Internet of Things Data Transmission Equipment.
