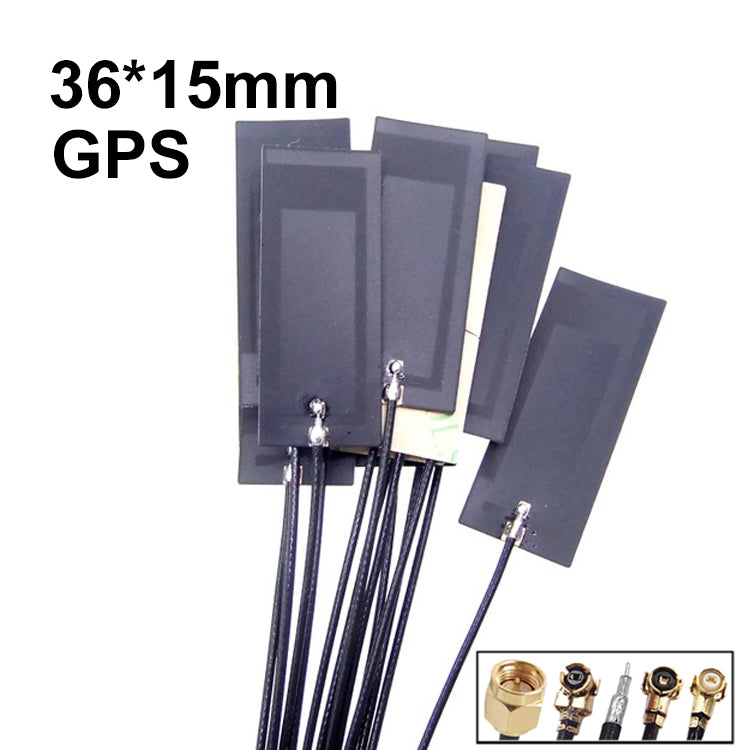

36*15mm High Gain Omnidirectional GPS Antenna GPS Module Built-in FPC Antenna GPS Passive Positioning Antenna

QTY:  10+/100+/500+/3000+/10000+

Price:  0.6/0.55/0.5/0.45/Inquire better price

Model Numer: FT-GPSFPC01

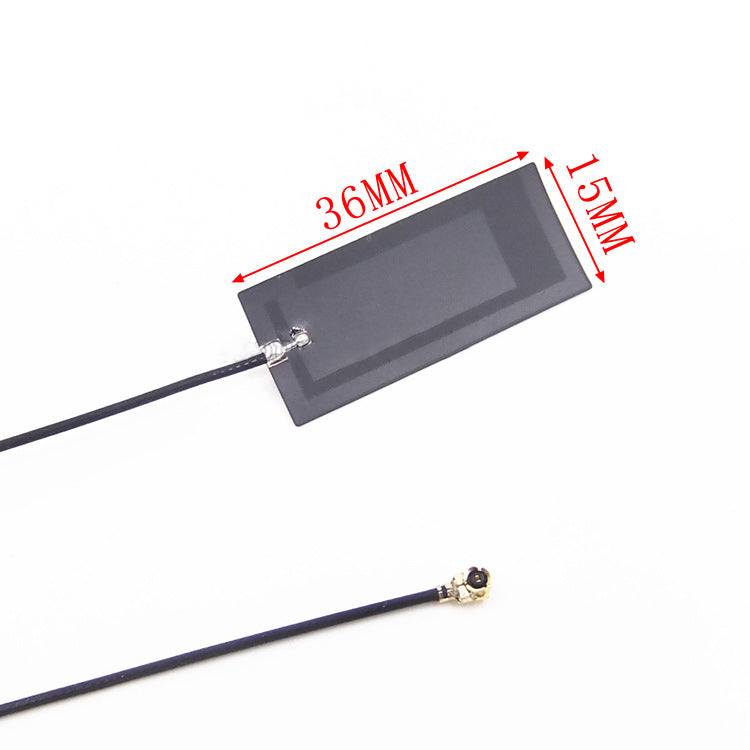

Dimension: 36*15mm

Frequence: 1575.42MHz

Gain: 5 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default),RG174 or customized

Cable Length: 50-100-150mm(default) or customized

Connector: IPEX/U.FL(default)/Welding/IPEX3/MHF4/SMA

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS
