Shenzhen Faycent Technology Co.,Ltd

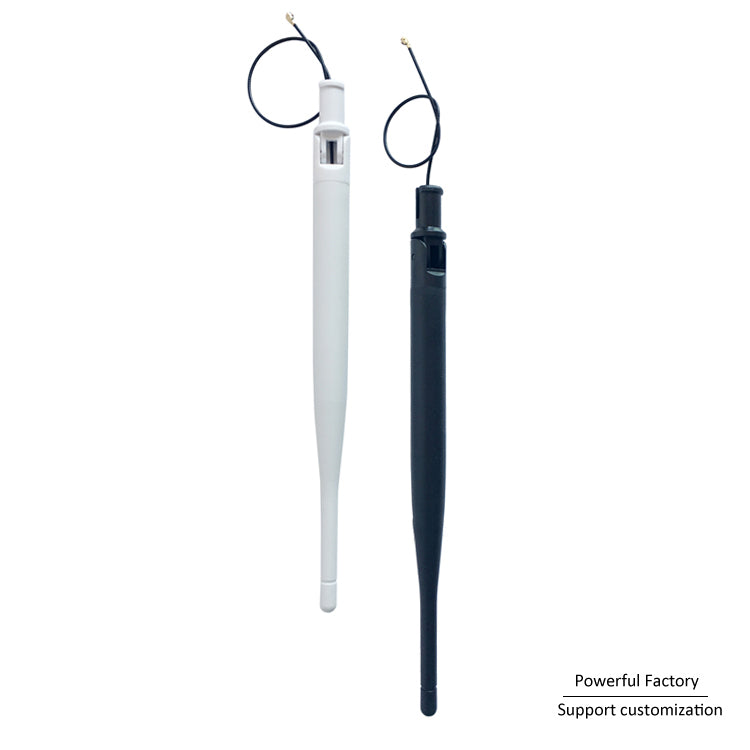

2G 3G GSM N-IOT Antenna 2.4G 5G 5.8G Omin Router Wifi Antenna 4G LTE Rubber Duck Antenna with RG1.13 Cable Ipex ufl Connector
2G 3G GSM N-IOT Antenna 2.4G 5G 5.8G Omin Router Wifi Antenna 4G LTE Rubber Duck Antenna with RG1.13 Cable Ipex ufl Connector
Regular price
$1.50 USD
Regular price
$3.00 USD
Sale price
$1.50 USD
Unit price
per
Couldn't load pickup availability
Model Numer: FT-EXCX01-04
Dimension: 190mm,196mm,105mm,155mm
Frequence: 2G 3G GSM N-IOT 2.4G 5G 5.8G 4G LTE
Gain: 3dbi,5dbi,6dbi
VSWR.: ≤2.0
Impedance: 50 ohm
Cable Loss: 0.3dbi Max
Polarization: Vertical Polarization
Coaxial Cable:
15cm RG1.13 Cable(Default) /Customized
Connector:
Ipex1(UFL)(Default)/Welding/Ipex3/ipex4/mmcx/mcx/SMA
Admitted Power: 2W
Antenna Material: PCB
Outter Material: ABS
Color: Black,White
Application:
IEEE 802.11 b/g/n WLAN System
Wireless Communication System
Wi-Fi / WiMAX / MIMO System
Operation Temperature: - 40℃ ~ + 85℃
Storage Temperature:- 40℃ ~ + 80℃
Certificates: ROHS
