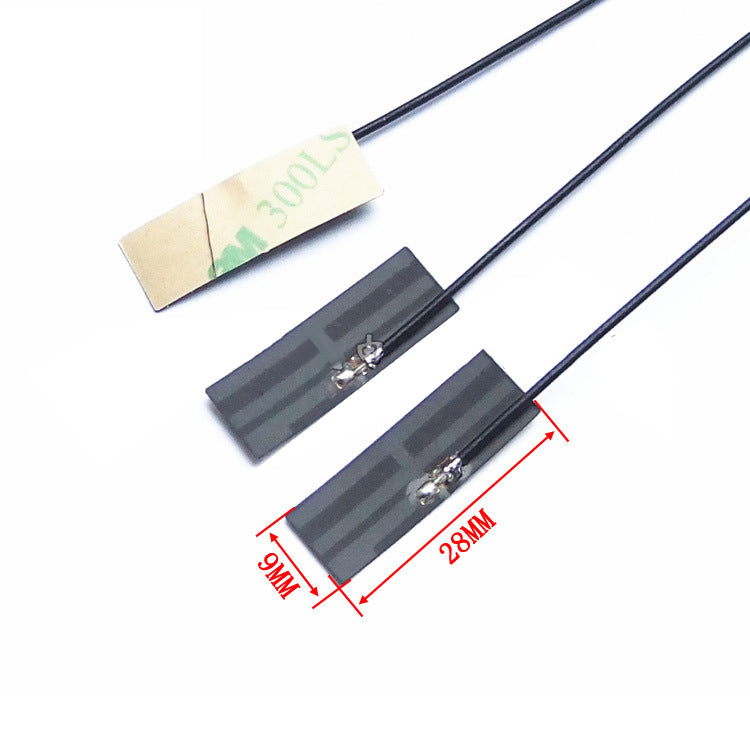

28*9mm 2.4G Internal Flexible Soft Antenna IPEX 1.13 0.81 1.37 ZigBee Bluetooth Wifi Module Omnidirectional Smallest Size FPC Antenna

QTY:  10+/100+ /500+ /3000+

Price:  0.45/0.39/0.35/ Inquire better price

Model Numer: FT-24FPC-02

Dimension: 28*9*0.1mm

Frequence: 2400-2500MHZ

Gain: 3 dbi

VSWR.: ≤1.5

Impedance: 50 ohm

Power Rating: 30 dbm

Polarization: Linear

Coaxial Cable: RG1.13(default),RG174 or customized

Cable Length: 50-100-150mm(default) or customized

Connector: IPEX/U.FL(default)/Welding/IPEX3/MHF4/SMA

Operation Temperature: - 40℃ ~ + 85℃

Storage Temperature:- 40℃ ~ + 85℃

Certificates: ROHS

Used For: Wireless AP, Digital Photo Frame, Wireless IP Camera,Wirelss CDMA,Wireless TV, Smart TV, Wireless Internet Radio,Smart Phone,Set Top Box, Desktp PC, Notebook, Laptop, Wireless Digital Camera,Smart Home,Vending Machine.
