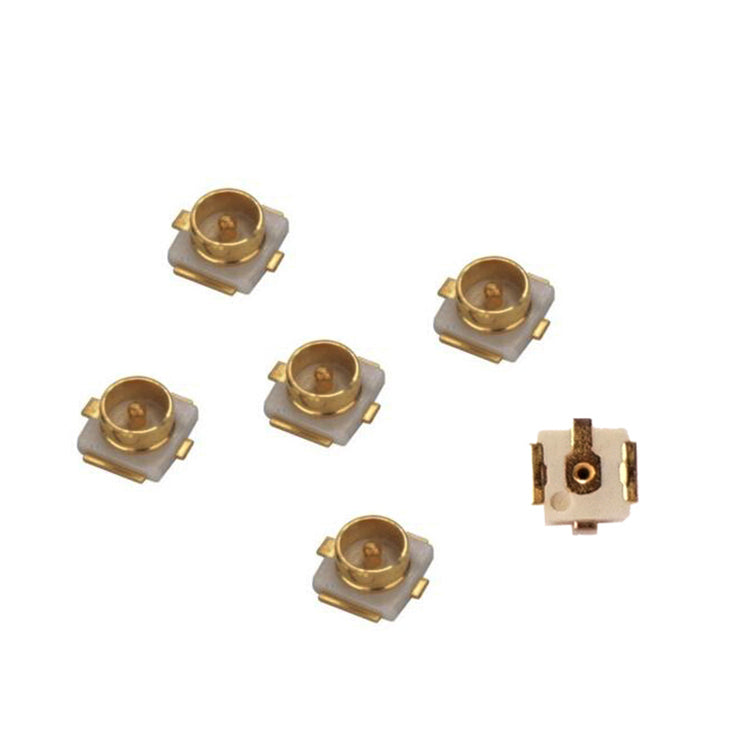

20279 RF Header U.FL Receptacle IPX I-PEX Connector

QTY:  20+ /100+ /1000+/ 5000+

Price:  0.1/0.08/0.07/0.06 Inquire better price

Model Numer: FT-20279UFL

Material:Copper

Color: Brass

Connector 1: IPEX Male

Frequency : DC~6GHz

 V.S.W.R  : 1.3MAX (DC~3GHz)

                  1.5MAX (DC~6GHz)

Rated Voltage : AC60V (rms)

Contact Resistance :20mm-ohmMAX

Withstand Voltage  : AC200V/minute

Insulation resistance  :500M-ohmMIN./DC100V

Nominal characteristic impedance :50Ω

Operating humidity: 90%
