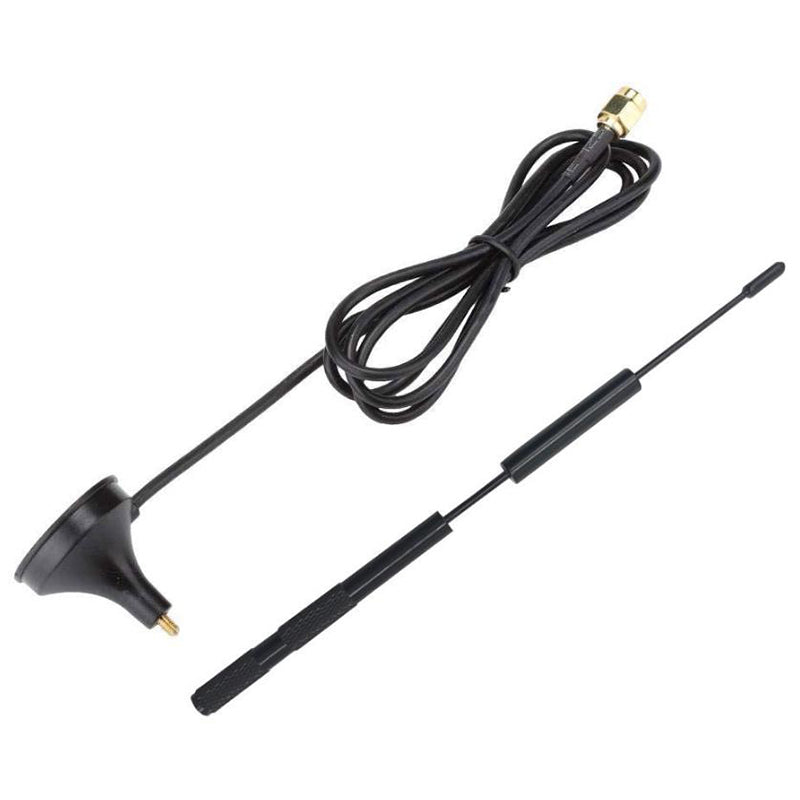

2.4G 5.8G Small Sucker RF Antenna Wireless Wifi Network Card Router Module 10DBi Magnetic Base Antenna
2.4G 5.8G Small Sucker RF Antenna Wireless Wifi Network Card Router Module 10DBi Magnetic Base Antenna
Model Numer: FT-EXM2458-01
Dimension: 200mm
Frequence: 2400-2500MHz,4900-5900MHz
Gain: 10 dbi
VSWR.: ≤1.5
Impedance: 50 ohm
Cable Loss: 0.3dbi Max
Cable:RG174 OD2.5mm 3Meters
Polarization: Vertical
Connector: SMA Male(default)/RP-SMA Male
Admitted Power: 2W
Vibration: Sine sweep 1g(0-p), 10~50~10Hz each axis
Humidity: 95%~100%RH
MTBF=1×10-6/pc.hr: 40°C±5°C, 2000pcs For 480h
Radiation: Omni directional
Max wind speed: 200km/h
Outter Material: Stainless Steel
Color: Black(Default)
Application for Device:
1. EEE 802.11 b/g/n WLAN System
Operation Temperature: - 40℃ ~ + 85℃
Storage Temperature:- 40℃ ~ + 80℃
Certificates: ROHS
